XS Perfume-making Machine Fragrance Chiller Filter Mixer applied on perfume, fragrance, parfume, hair spray, body spray etc.
| Technical Parameter | |||||
| Model | 2P-100 | 3P-200 | 5P-300 | 5P-500 | 10P-1000 |
| Freezing power | 2P | 3P | 5P | 5P | 10P |
| Freezing capacity | 100L | 200L | 300L | 500L | 1000L |
| Filtration precision | 0.1μm | 0.1μm | 0.1μm | 0.1μm | 0.1μm |
| Refrigeration temp | -5°C to -15°C | ||||
| Refrigeration liquid | R22 (or other medium per customer choice) | ||||
| Customized sizes are accepted | |||||

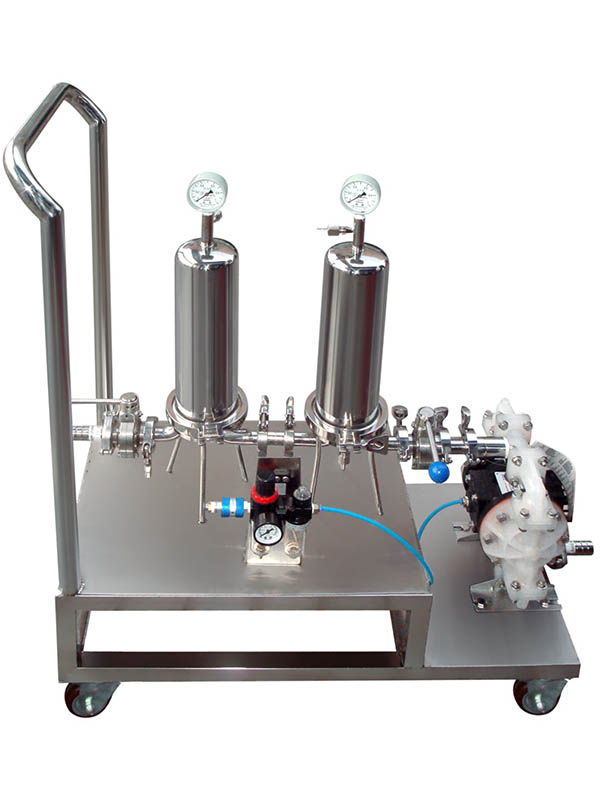

The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection, with convenient assembly, disassembly and cleaning.
Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

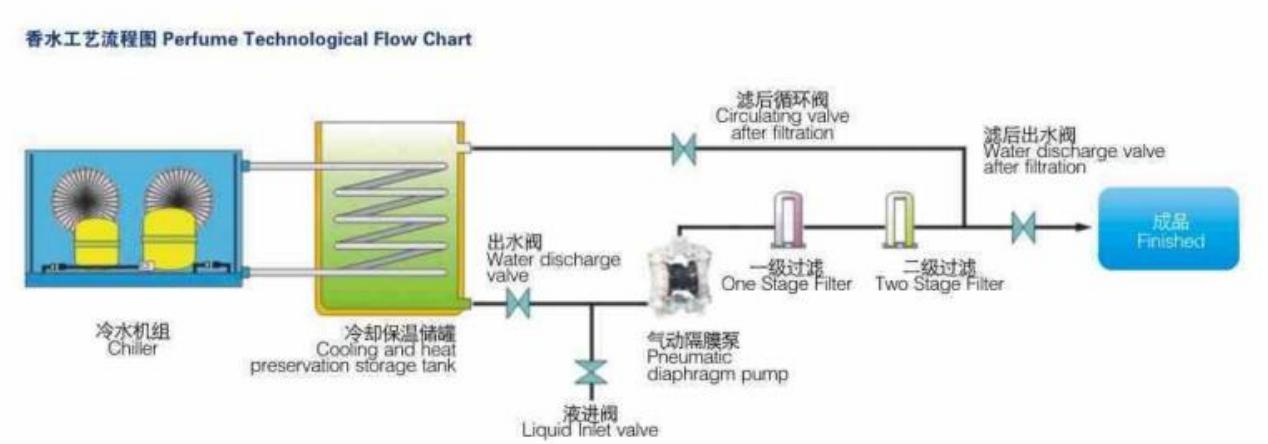

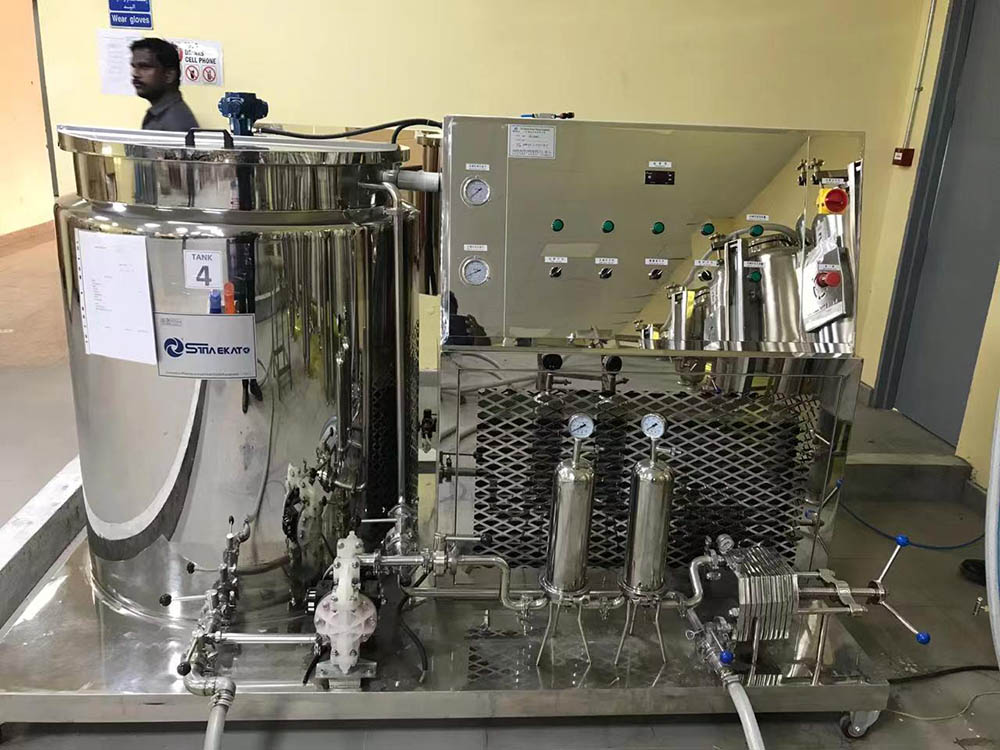

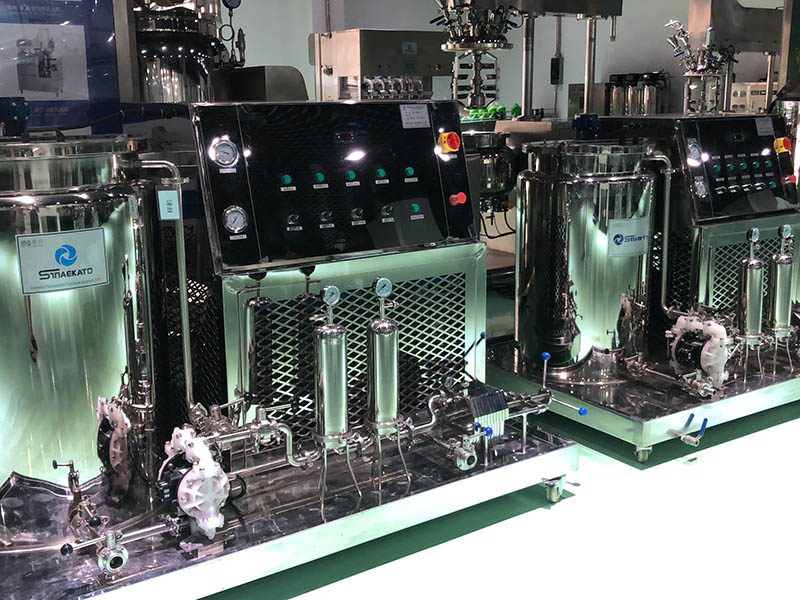

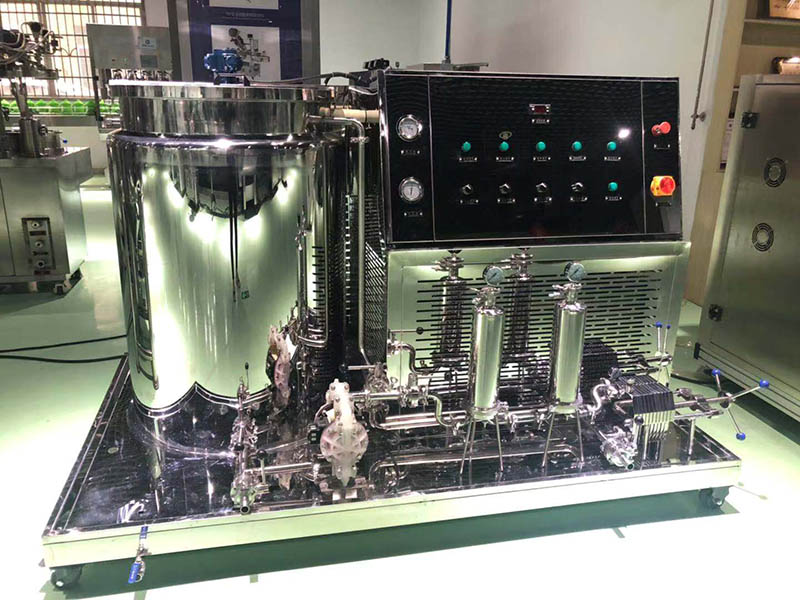

Integrated System Includes: Mixing tank for raw material + Chiller system for cooling perfume + Pump for circulation & discharge + 3 times filter process.
