📊 Technical Specifications
| Model |
Capacity |
Homogenizer Motor |
Stir Motor |
Dimension (mm) |
Total Power (KW) |
Limit Vacuum (Mpa) |
| KW |
r/min |
KW |
r/min |
Length |
Width |
Height |
Steam |
Electric |
| SME-C5 | 5L | 0.37 | 3000 | 0.18 | 63 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.09 |
| SME-C10 | 10L | 0.75 | 3000 | 0.37 | 63 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.09 |
| SME-C50 | 50L | 3 | 3000 | 1.1 | 63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.09 |
| SME-C100 | 100L | 4 | 3000 | 1.5 | 63 | 2750 | 2380 | 2100/2950 | 13 | 32 | -0.09 |
| SME-C200 | 200L | 5.5 | 3000 | 2.2 | 63 | 2750 | 2750 | 2350/3350 | 15 | 45 | -0.09 |
| SME-C300 | 300L | 7.5 | 3000 | 2.2 | 63 | 2900 | 2850 | 2450/3500 | 18 | 49 | -0.085 |
| SME-C500 | 500L | 11 | 3000 | 4 | 63 | 3650 | 3300 | 2850/4000 | 24 | 63 | -0.08 |
| SME-C1000 | 1000L | 15 | 3000 | 5.5 | 63 | 4200 | 3650 | 3300/4800 | 30 | 90 | -0.08 |
| SME-C2000 | 2000L | 15 | 3000 | 7.5 | 63 | 4850 | 4300 | 3800/5400 | 40 | _ | -0.08 |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
⚙️ Core Homogenizing Technology
High Speed Centrifugal Force: High speed rotor endows the material with great centrifugal force. When slowing down instantaneously, the material suffers the associative action of cavitation, detonation, shearing and grinding.
99% Uniformity: Material is imbibed from the upside and erupted from the sideward plug hole. Combined with the stirrer, granules spread homogeneously to a degree of uniformity over 99%.
Precision Engineering: Very small aperture between stator and rotor assures the effect of grinding and emulsifying while avoiding colliding friction during high-speed rotation.
🏭 Full Production Solutions
Fully automatic production line
We offer a comprehensive range of machinery including Reverse osmosis water purifiers, vacuum homogenizing emulsifiers, aseptic storage tanks, drying sterilizers, ointment filling machines, conveying workbenches, code printers, labeling machines, aluminum foil sealing machines, and shrink film machines.
💡 Advanced Stirring & Control System

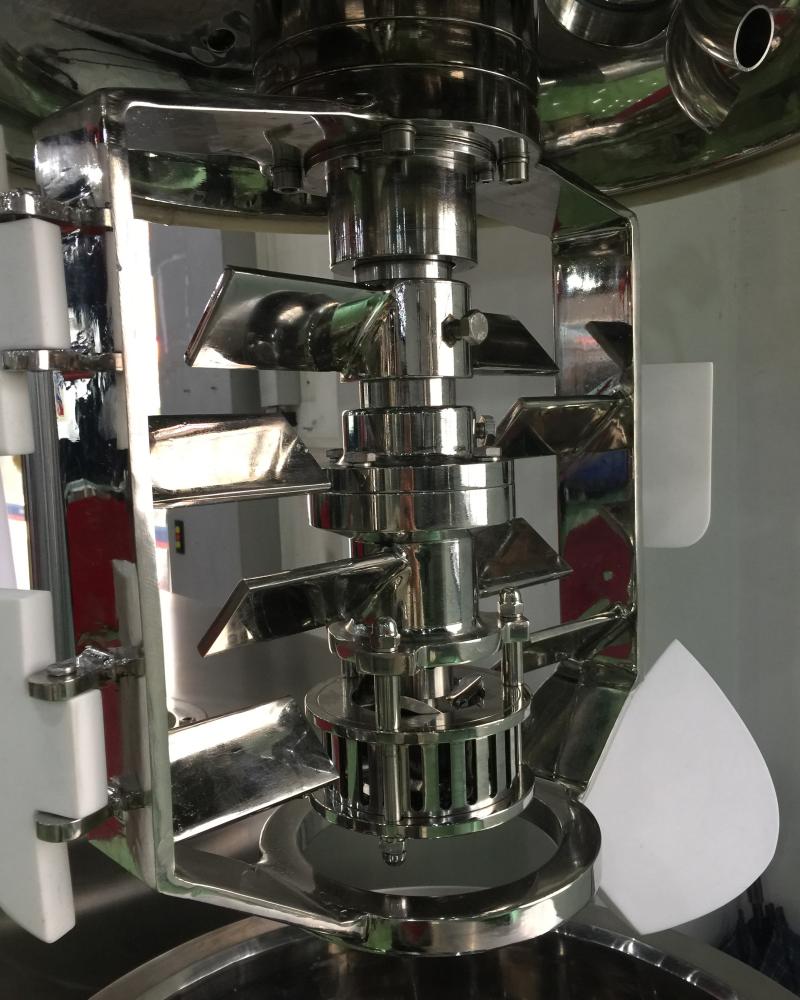

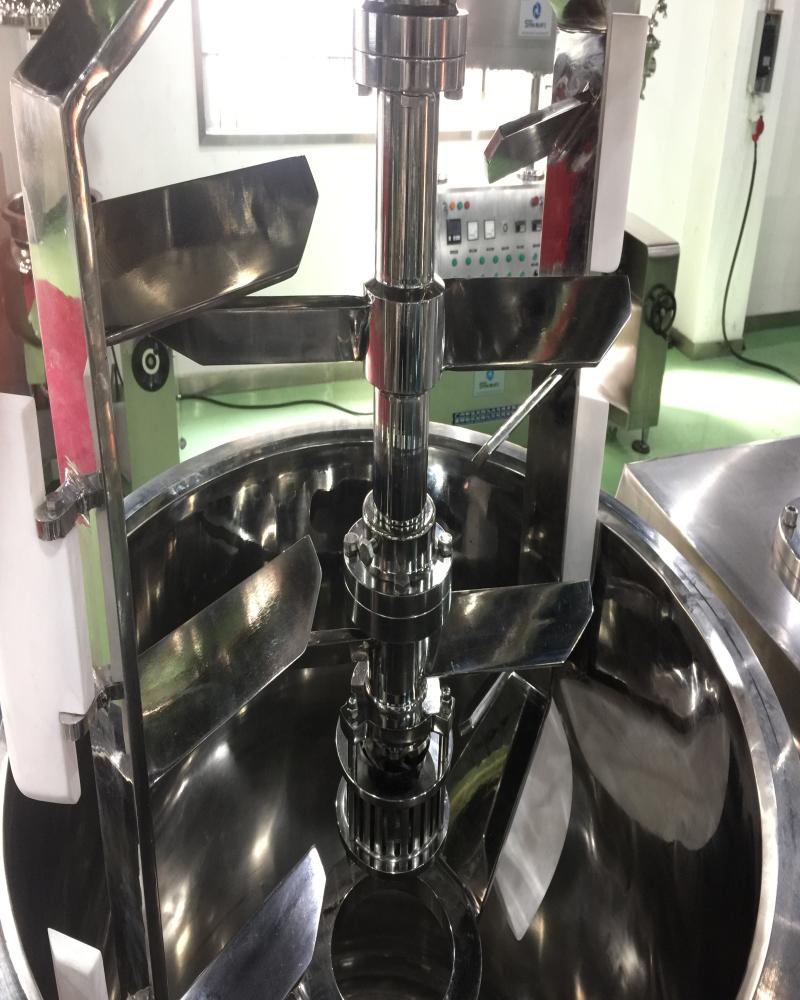

Shape of the Blender Blades: Two-way mixing with frame scraping wall.
Button Controlled: Each button has its own function to adjust mixing speed and manage operations efficiently.
The SME-C bidirectional stirring vacuum emulsifier system is composed of high-speed homogenizer shear, center stirring paddle, and scraping stirring frame. This ensures full volume materials are stirred without dead corners, refining sticky products faster and more efficiently.
📦 Specialized Equipment Range
Reverse Osmosis Water Treatment
Aseptic Storage Tank
Semi-Automatic Filling Machine
Capping Machine (Full-Auto & Semi-Auto & Manual)
Labeling Machine (Top Cover, Round & Flat)
✨ Application Fields
|
| Hair Conditioner | Facial Mask | Moisturizing Lotion | Sunscreen |
| Skin Care | Shea Butter | Body Lotion | BB Cream |
| Cream | Hair Cream | Cosmetic Paste | Foundation |
| Lotion | Face Wash Liquid | Mascara | Hair Gel |
| Lip Balm | Serum | Lipstick | Shampoo |
|
| Cheese | Milk Butter | Ointment | Ketchup |
| Mustard | Peanut Butter | Mayonnaise | Wasabi |
| Toothpaste | Margarine | Salad Dressing | Sauce |
With many years of experience in domestic and international installation, we provide internationally top-ranking professional project installation and management experience. Our after-sales service personnel have practical experience in equipment use and receive systemic training.
🔍 Component Details

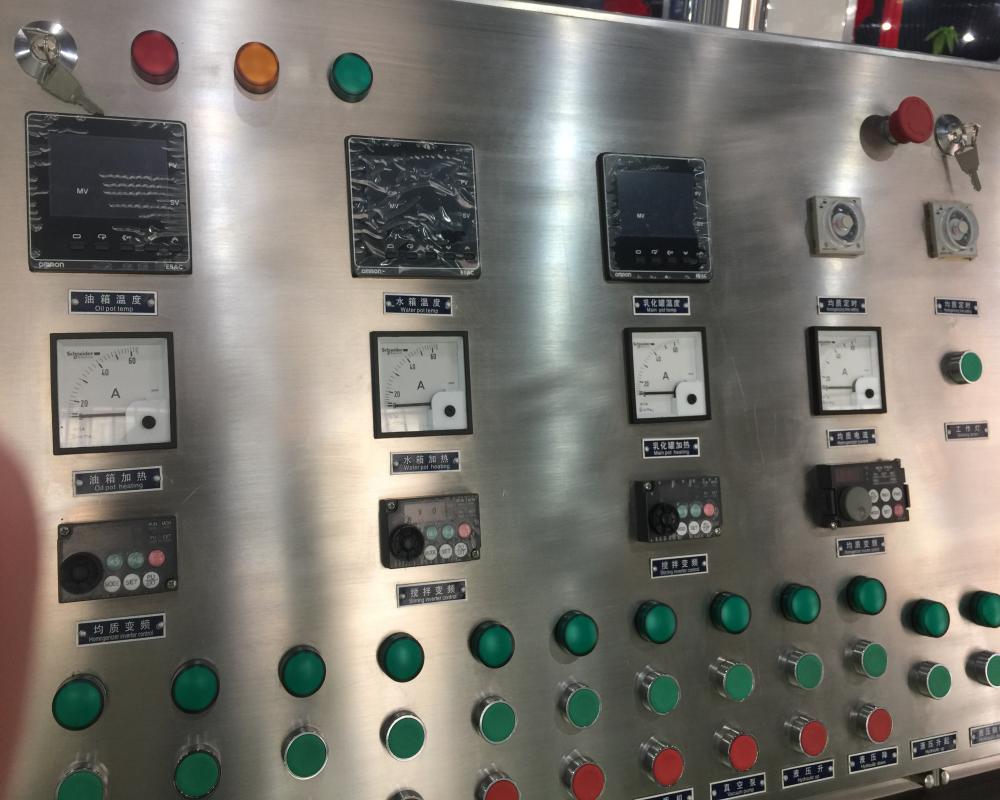

PLC Control Cabinet (High Performance)
Cover Parts (Pressure Meter, Sight Glass)
❓ Frequently Asked Questions
What materials can the vacuum homogenizing emulsifier process?
The system is designed for a wide range of products including daily cosmetics (creams, lotions, shampoos), food items (mayonnaise, ketchup, sauces), and pharmaceutical ointments. It is especially efficient for highly viscous products.
What are the advantages of bidirectional stirring?
The bidirectional system combines high-speed shear with a center stirring paddle and a frame scraping wall. This ensures thorough mixing without dead corners, making the process faster for sticky materials.
Does the machine support heating and cooling?
Yes, the machines support both steam heating and electric heating options (as detailed in the specifications table) to suit different production environment requirements.
How is the vacuum level maintained during operation?
The machines are designed to maintain a limit vacuum between -0.08 Mpa and -0.09 Mpa, ensuring the removal of air bubbles and preventing material oxidation during processing.
Are the machines customizable for specific production needs?
Yes, while standard models range from 5L to 2000L, technical improvements or specific customizations can be implemented based on the actual production requirements of the user.
What kind of control system is used?
The equipment features high-performance PLC control cabinets with clear line layouts and button-controlled interfaces for precise adjustment of mixing speeds and functions.
