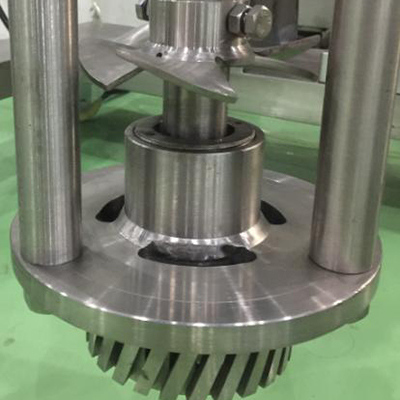

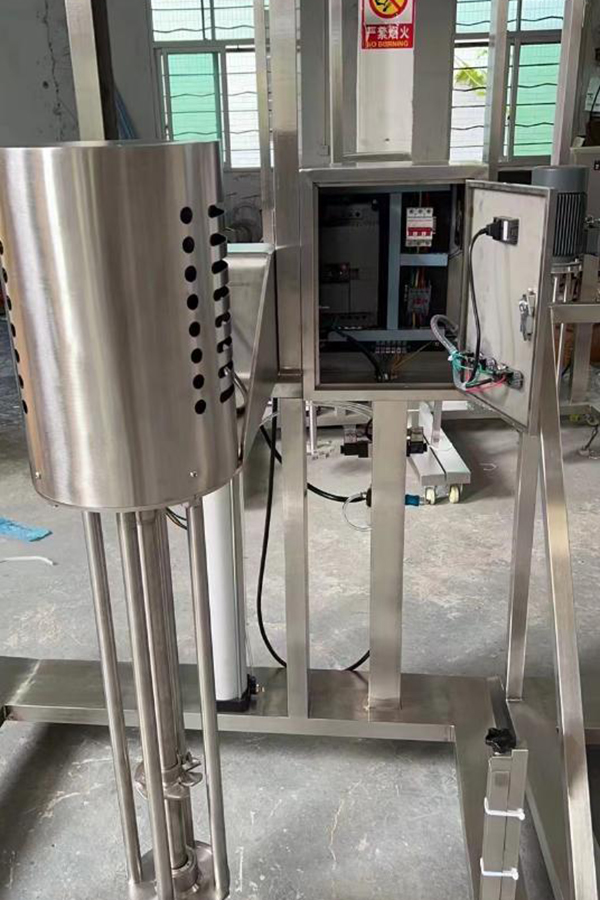

Homogenizer head (shape can be customized)

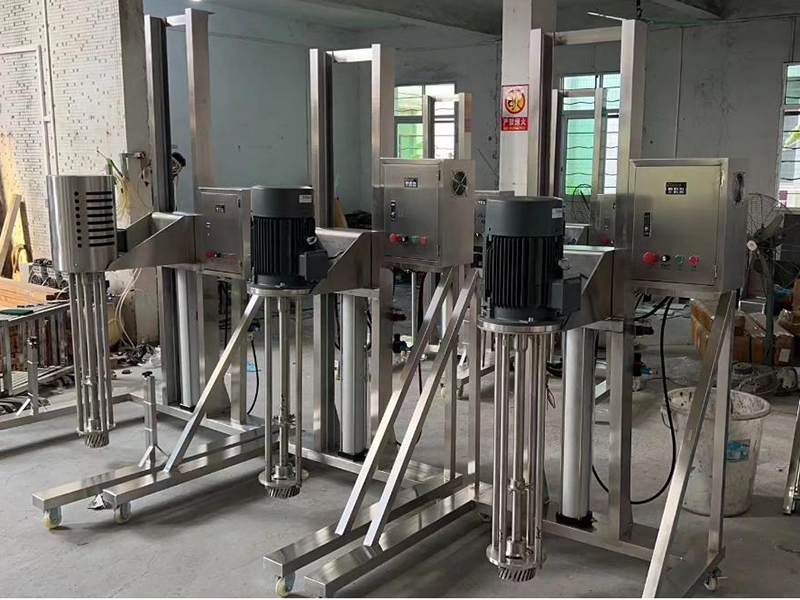

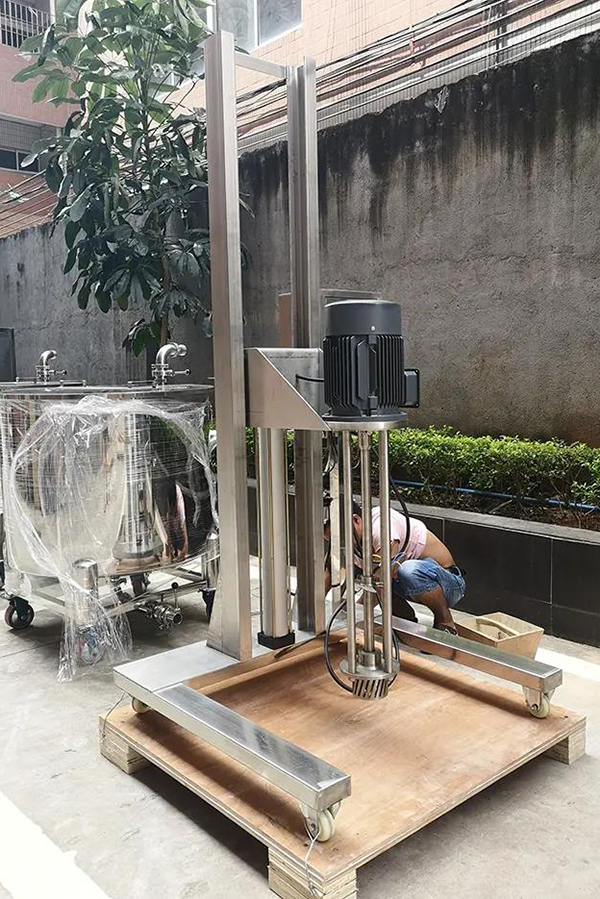

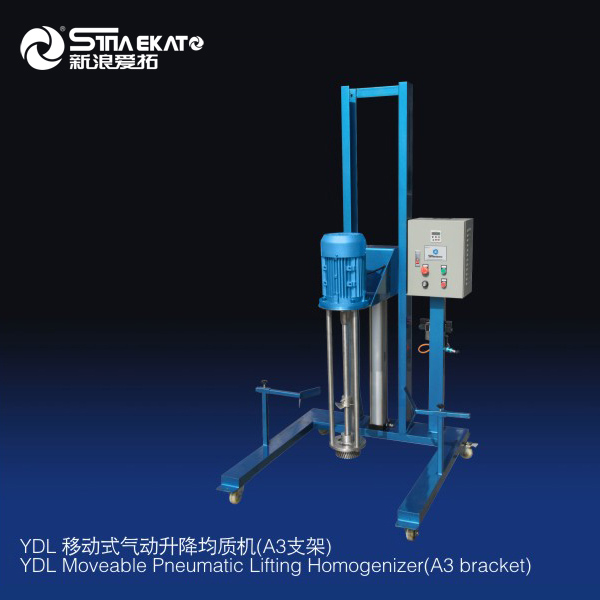

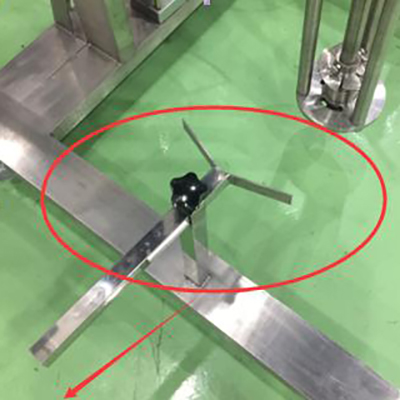

Adjustable X stand for tank stability or mobility

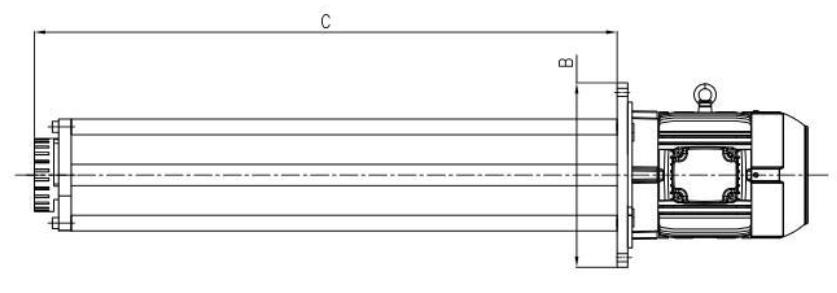

| Model | Power (Kw) | Speed (r/min) | C (mm) | B (mm) | Processing capacity (L) |
|---|---|---|---|---|---|
| YDL | 1.5 | 2900 | 430-530 | 270 | 10-70 |
| 2.2 | 2900 | 550-650 | 270 | 50-150 | |
| 4 | 2900 | 750-1000 | 320 | 100-400 | |
| 7.5 | 2900/1450 | 830-1100 | 380 | 200-1000 | |
| 11 | 2900/1450 | 830-1700 | 450 | 300-1500 | |
| 18.5 | 2900/1450 | 1150-1950 | 450 | 500-2000 | |
| 22 | 2900/1450 | 1200-1950 | 485 | 800-2500 | |
| 30 | 2900/1450 | 1350-2700 | 485 | 1000-3500 | |
| 37 | 2900/1450 | 1350-2700 | 485 | 1500-6000 | |
| 55 | 1450 | 1600 | 640 | 2000-10000 | |
| 75 | 1450 | 1600 | 640 | 3000-12000 | |
| 90 | 1450 | 1600 | 640 | 4000-15000 | |
| 110 | 960 | 1600 | 755 | 5000-17000 | |
| 132 | 960 | 2000 | 755 | 6000-18000 | |
| Can be customized | |||||

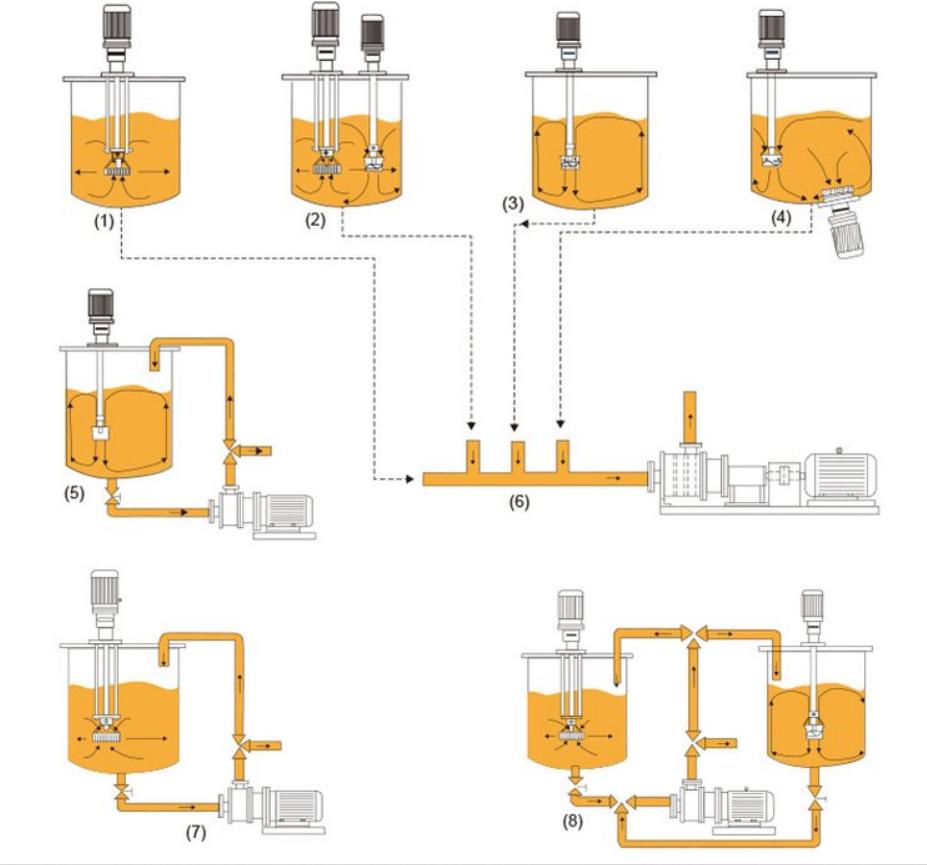

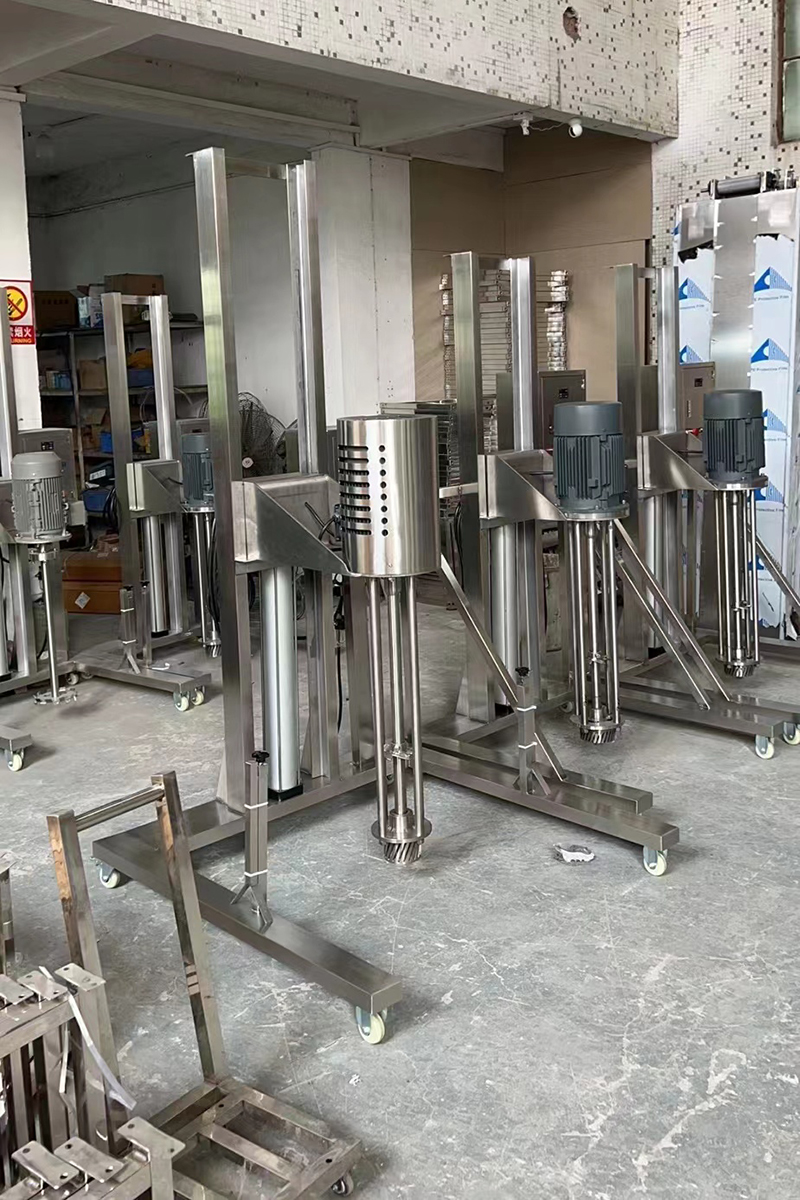

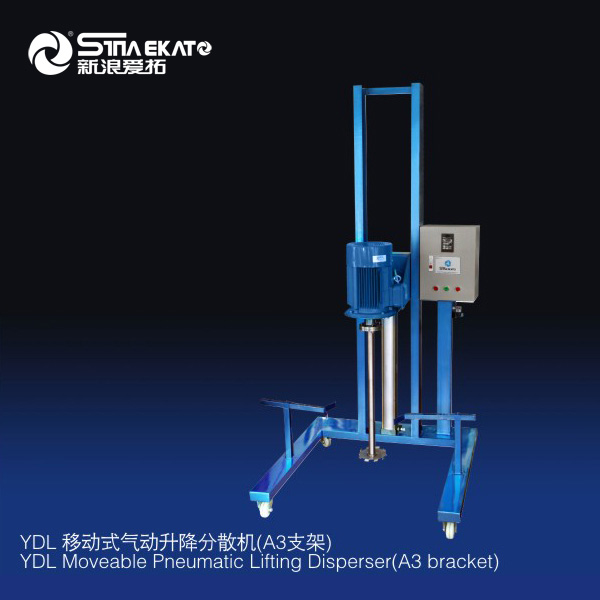

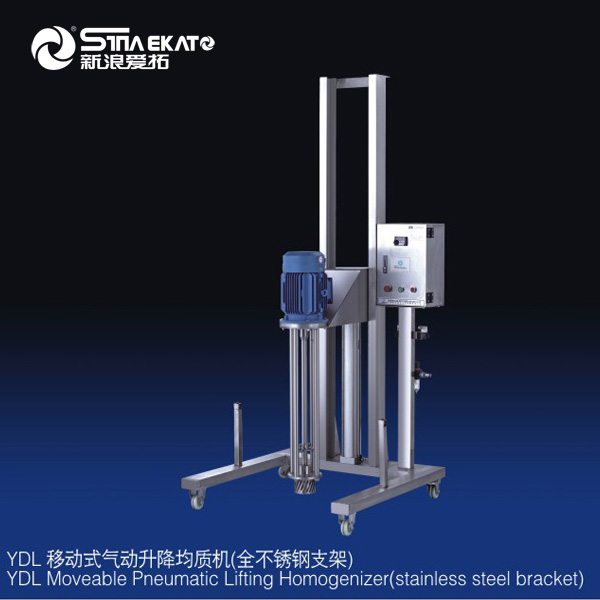

The high speed shear emulsifier integrates the functions of mixing, dispersing, refinement, homogenization, and emulsification. It is usually installed with the kettle body or on a mobile lifter stand or a fixed stand, and is used in conjunction with an open container.
High shear emulsifiers are used in emulsification and homogenization production processes in various industries such as food, pharmaceuticals, cosmetics, chemicals, mining, paper making, water treatment, and fine chemicals.
High shear mixers developed by our company are based on the theory of stability of emulsion. The mechanical equipment uses the mechanical energy provided by the system of high shear rotor stators with high speed rotation to blend one phase into the other. Depending on the deformation and rupture of the thick droplets, the thick droplets will break into micro-droplets, ranging from 120nm to 2um. Finally, the liquid droplets are completed as regards a uniform emulsification process.
