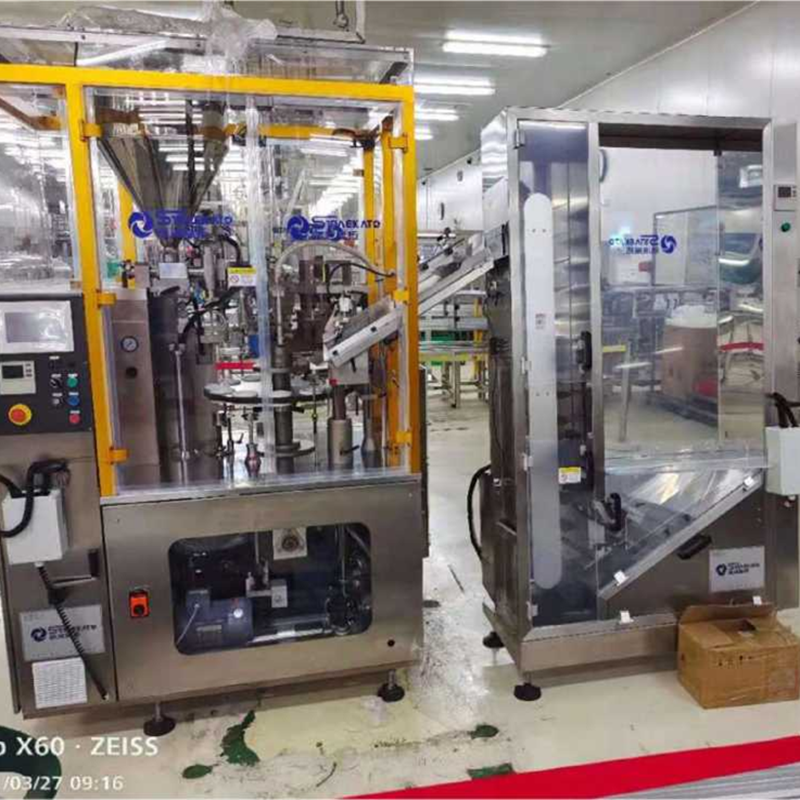

The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.
⚡
Biggest Special:
Speed: 80Pcs/Min for 100ml tube
Hot air moved by CAM: instead of cylinder
Advantage on ST-600 Tube Filling Machine
- Safety Priority: Follows EU standards and "CE" support. Equipped with an Italian torque clutch to effectively protect the machine from crashes and prevent injury to workers.

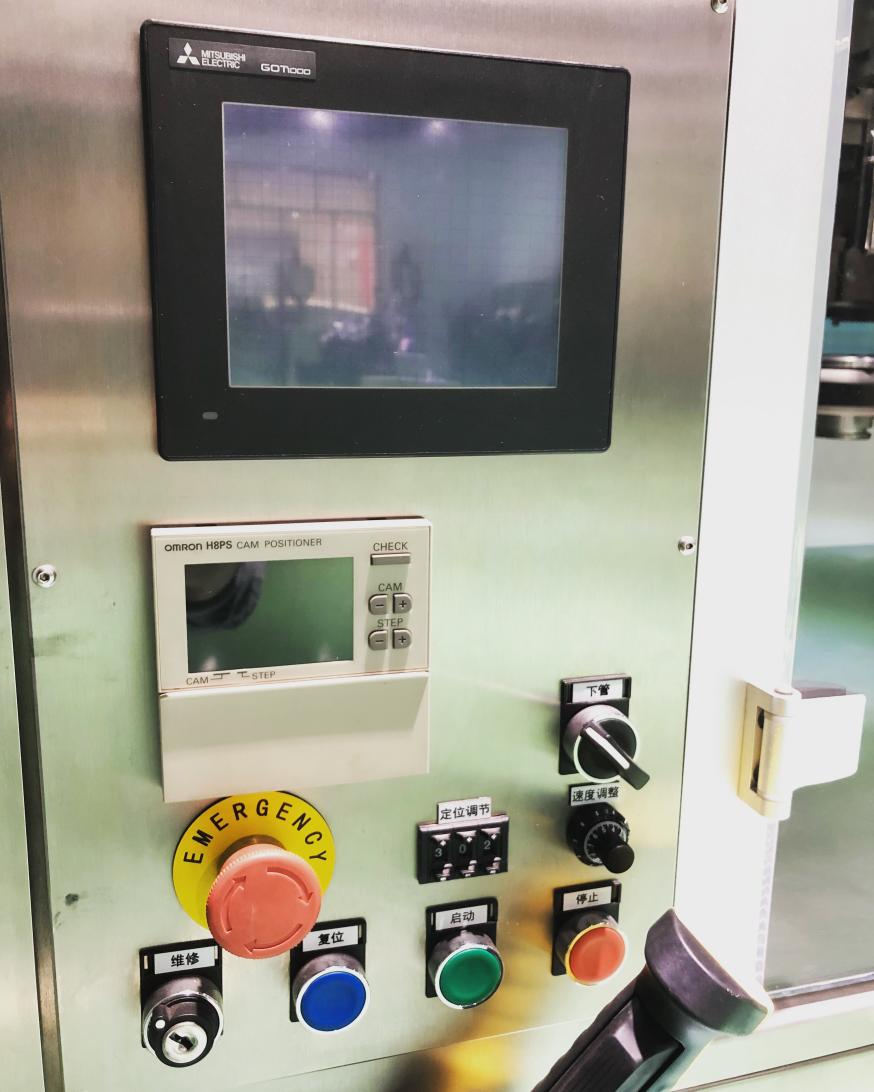

- Intuitive Control: Features a Japan safety operation handle instead of a simple button to effectively protect personnel operating risk.
- Pure Mechanical Design: Easy for maintenance and repair, equipped with omni-directional security doors.
- GMP Compliant: No pollution design. Filling nozzles made of French materials with unique cutting to ensure no leaking.
- High Precision: Uses a perfect combination of Italian driver and Japanese Sanyo step to ensure 99% qualified sealing rate.
- Premium Components: Uses high-end parts including Feston pneumatic components (1:1 following Europe machine standards).
Global Performance
International Case Studies
Proven track record with successful installations in USA, JAPAN, DUBAI, PAKISTAN, and many other countries.

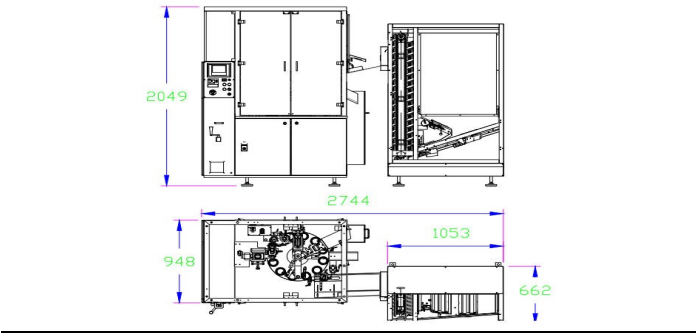

Technical Specifications
Filling volume: 1-400ml
Filling speed: Around 80 pcs/min
Precision: ≤ ±1%
Tube diameter: Φ16-50mm (Max 55mm)
Tube length: Max 200mm-210mm
Hopper capacity: 45L
Air pressure: 0.5-0.7 MPa
Voltage: 380V / 50Hz 3Phase
Power Consumption: 5.5 KW
Output: 4800 tubes/hour
Automated Workflow
The machine is operated by only one person and automatically carries out the following operations:
- Tube transfer into the tube-holder
- Automatic orientation according to the spot
- Precision tube filling
- Counting of filled tubes
- Tube sealing and date marking
- Automatic ejection of filled and sealed tubes
Core Components Configuration
| Name |
Original |
Manufacture |
Feature |
| Motor Reductor |
Germany |
 |
Transmission |
| Cam indexers |
Japan |
 |
Transmission |
| Torsion Limiter |
Italy |
 |
Transmission |
| Adjust-speed motor |
Japan |
 |
Discharge tube |
| Step Electronics |
Japan |
 |
Rotational Position |
| Pneumatic parts |
Germany |
 |
Multifunctional |
Related Equipment
GZF-S Semi-auto Cream Lotion Toothpaste Hair-dye Gel Tube Filling and Sealing Machine
Cartoning Machine Integration
Frequently Asked Questions
Q1: What types of tubes can this machine handle?
A: The machine is designed for various plastic tubes, aluminum tubes, and aluminum composite tubes, commonly used for toothpaste, creams, and gels.
Q2: What is the maximum production speed of the ST-600?
A: It can reach a speed of 80 pieces per minute for 100ml tubes, resulting in an output of approximately 4800 tubes per hour.
Q3: Does the machine comply with international safety standards?
A: Yes, it follows EU standards with "CE" support and features Italian torque clutches and Japanese safety handles to ensure worker protection.
Q4: Is the filling process accurate and clean?
A: Absolutely. It offers a precision of ≤ ±1% and uses unique French material nozzles to ensure no leaking or pollution, meeting GMP requirements.
Q5: How many operators are required for the automatic machine?
A: The machine is highly automated and requires only one person to feed the empty tubes into the store feeder.
Q6: What tube dimensions are supported?
A: It supports tube diameters from 16mm to 50mm (max 55mm) and tube lengths up to 210mm.
