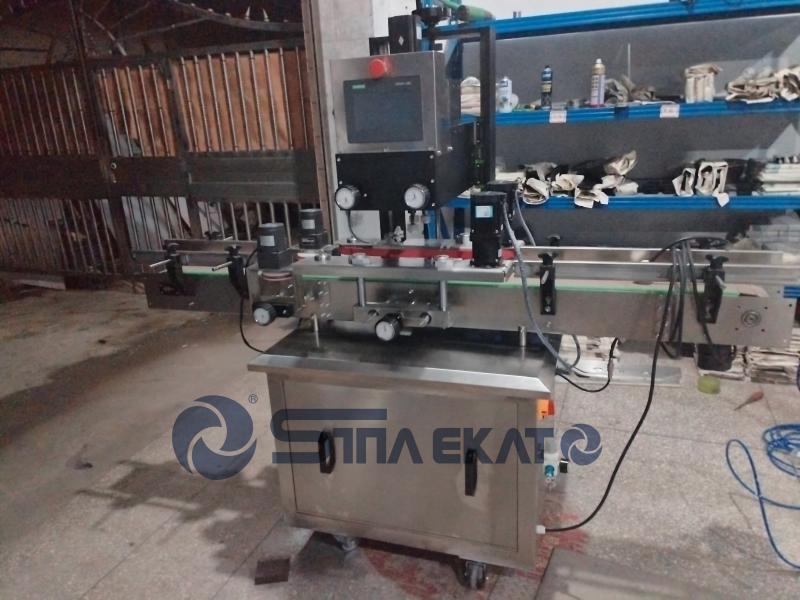

⚙️The automatic capping machine completes the capping operation efficiently through automatic conveyor belt, positioning, tightening and other steps. The parts in contact with the product are made of Swedish 316 stainless steel and processed by CNC machine tools to ensure that the surface roughness is less than 0.8.
Automatic capping machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.
Technical Specifications
| No |
Description |
Details |
| 1 |
Servo capping machine |
Servo motor screw cap (automatic torque control); Bottle driven by stepper motor; Cylinder presses down on cap; Optical fiber sensor location |
| 2 |
Cap range |
30-120mm |
| 3 |
Bottle height |
50-200mm |
| 4 |
Capping speed |
0-80 bottles per minute |
| 5 |
Work condition |
Power: 220V 2KW; Air pressure: 4-6KG |
| 6 |
Dimension |
2000*1000*1650mm |
System Components
🚀 Conveying system: Automatically sends the cap to the capping position.
📍 Positioning system: Accurate positioning of the bottle body and cap.
🔧 Screw cap: Screw or loosen the cap according to preset torque.
⚙️ Transmission system: Drives equipment and ensures coordination.
💻 Control system: PLC and touch screen for operation and adjustment.
Key Advantages
✅ High efficiency: Greatly improve production output.
✅ Precision: Consistent capping force for better sealing.
✅ Flexible: Adaptable to various bottle and cap shapes.
✅ Reliable: Reduces human error and improves consistency.
Application Examples
Main Components List
| No |
Name |
Pcs |
Origin |
| 1 |
Power driver |
1 |
TECO China |
| 2 |
7 inch touch screen |
1 |
TECO China |
| 3 |
Pneumatic element set |
1 |
China |
| 4 |
Photoelectric switch |
1 |
Omron Japan |
| 5 |
Servo motor |
4 |
TECO China |
| 6 |
Bottle feeding and clamping motor |
2 |
TECO China |
Related Packaging Equipment

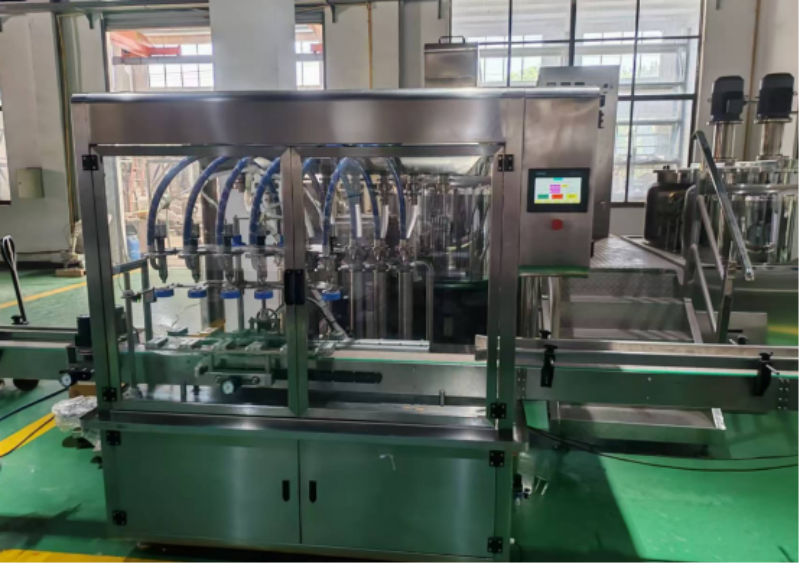

Feeding Table & Collection Table | Labeling Machine | Full-auto Filling Machine
Frequently Asked Questions (FAQ)
❓ What materials are used in the product contact parts?
The parts in contact with the product are made of high-quality Swedish 316 stainless steel to ensure hygiene and durability.
❓ What is the maximum capping speed of this machine?
The machine can achieve a capping speed of 0 to 80 bottles per minute, depending on the bottle and cap specifications.
❓ Can this machine handle different bottle sizes?
Yes, it is highly flexible and suitable for bottle heights ranging from 50mm to 200mm and cap diameters from 30mm to 120mm.
❓ How does the machine ensure the caps are tightened correctly?
The machine uses a servo motor for screw capping, which allows for automatic and precise torque control.
❓ Is the machine easy to operate and adjust?
Yes, the equipment features a PLC control system and a 7-inch touch screen for intuitive operation and easy parameter adjustment.
❓ Which industries typically use this capping machine?
It is widely used in the chemical and cosmetic industries for packaging shampoo, conditioner, body wash, and various skin care products.
