1) Double press roll delivery: Improves labeling accuracy. Before labeling, the label passes through the initiative pressing roll to eliminate wrinkles and ensure high-quality application to the very last label.
2) Secondary rocker spring delivery: Equipped with an additional belt brake clutch to achieve high-speed constant tension delivery.
| Item No. | Project | Instruction |
|---|---|---|
| 1 | Goods size, shape, samples quantity | Oval bottle, flat bottle with front and back labels, round bottle wrap around label |
| 2 | Label size | Based on samples |
| 3 | Equipment direction | Face to touch screen, normal from left to right |
| 4 | Label Qty | Two labels |
| 5 | Production speed | 2000-8000 BPH |
| 6 | Equipment installation place | Labeling after filling |
| 7 | Equipment height | 900MM |
| 8 | Labeling method | Self-adhesive |
| 9 | Labeling requirement | Non-position labeling |
| 10 | Labeling accuracy | ±1MM |
Touch Screen: High-quality WEINVIEW display.
Top Belt Holder: Stand-alone type with motor control.
Synchronous Chain Correcting Device: Motor controlled with frequency converter speed adjustment. Specially designed for cone and oval bottles.
New Design Labeling Head (2 Sets): Concept design with multi-dimensional adjustment for high stability.
Oval/Cone Bottle Devices: Japanese servo motor control for delicate shapes. Round bottle wrap-around device for symmetrical labeling.
This system utilizes Siemens PLC for professional closed-loop control and 750W YASKAWA servo motors with ultra-small inertia. It achieves 0.01 m/min accuracy, significantly higher than standard machinery. The speed is adjustable between 0.5-40 m/min to perfectly match your production line.
Suitable for double-sided and wrap-around labeling on flat, oval, and round bottles. Widely used in:
Daily Chemicals | Petroleum | Food & Beverage | Pharmaceutical | Cleaning Supplies
| Technical Parameter | Value |
|---|---|
| Power | 220V 50 Hz 3000W |
| Production Speed | 40m/min |
| Label Accuracy | ±1mm |
| Max Label Roller OD | 400 mm |
| Label Roller ID | 76.2 mm |
| Max Label Height (Flat) | 180mm |
| Max Label Height (Round) | 168mm |

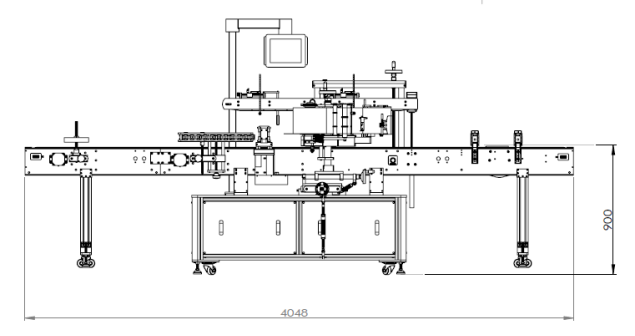

| Machine Size | L4048*W1400*H1650 (mm) |
| Weight | 500kg |
| Conveyor Height | 900mm |
| No. | Name | Qty | Brand |
|---|---|---|---|
| 1 | Color touch screen | 1 set | WEINVIEW |
| 2 | Servo motor | 2 set | YASKAWA |
| 3 | Servo driver | 2 set | YASKAWA |
| 4/5 | Frequency converter | 2 set | Danfoss |
| 6 | PLC | 1 set | Siemens |
| 7 | Label sensor | 2 pcs | LION 2100 |
| 8 | Bottle sensor | 1 pcs | LEUZE |
| 9/10 | Conveyor/Separate Motor | 2 pcs | WanSHin/Panasonic |
| 15/16 | Electrical Components | 1 set | Schneider |

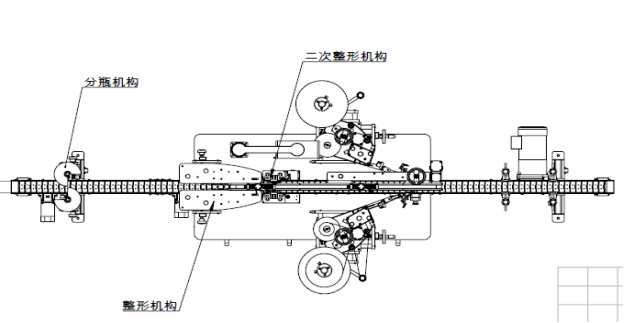

1. Front Label Direction
2. Back Label Direction
