The PME-4000L Mixer adopts a fixed pot body; the pot cover and pot body with flange connection cannot be lifted. The diversified high-speed homogenizer powerfully mixes solid and liquid raw materials, rapidly dissolving indissoluble materials such as AES, AESA, and LSA during the liquid detergent production process to save energy and shorten production cycles.
🛡️
The Mixer pot features three-layer stainless steel welding. The inner layer (SUS316L) ensures safe material contact, while the middle jacket and external insulation layers (304 stainless steel) meet strict GMP requirements with mirror-polished or matte finishes.
🔄
The stirring system utilizes double-direction wall scraping mixing and frequency conversion speed adjustment to satisfy diverse technological requirements.
📱
Controlled by an independent PLC electronic control cabinet with imported stainless steel materials. Key components include Siemens motors, Schneider Electric components, and Omron instruments, all monitored via a Siemens PLC touch screen.
✓
With extensive experience in domestic and international installation, our team has undertaken the integral installation of hundreds of large-sized projects.
✓
We provide top-ranking professional project installation and management experience internationally.
✓
Our after-sales personnel possess practical experience in equipment use and maintenance through systemic training.
| Model |
PME-4000L |
| Working Volume |
4000L |
| Design Volume |
5000L |
| Homogenizer Motor |
30KW | 0-3000 r/min |
| Stir Motor (External Mixing) |
7.5KW | 0-60r/min |
| Stir Motor (Internal Mixing) |
15KW | 0-30r/min |
| Overall Dimension (L*W*H) |
2300*2300* (unit: mm) |
| Type of Heating |
Steam heating |
| Note: In case of data inconformity due to technical improvement or customization, the real object shall prevail. |
Our company is a professional manufacturer of various types of cosmetic machinery and equipment, serving industries such as cosmetics, medicine, food, chemical, and electronics. Our products serve many nationally and internationally famous enterprises across the globe.
Focus on Quality and Certifications
80% of the main parts of our products are provided by world-famous suppliers. This collaboration ensures we provide customers with high-quality products and effective guarantees.
- ★ Delivery date: 30~60 days
- ★ Customized plans according to requirements
- ★ Support for video factory inspections
- ★ Equipment warranty for two years
- ★ Provision of equipment operation videos
The PME-4000L Mixer system includes a 4000L liquid washing homogenizing mixer, an independent PLC controlled electric cabinet, a piping system, a CG-8000L stainless steel storage tank, an electric lifting platform, and a stainless steel platform with safety railings.
Top Mixing System
Adopts bi-directional wall-scraping stirring with a German Siemens motor to provide efficient mixing and thorough blending of ingredients.
Bottom Homogenizer System
The bottom outer circulation homogenizer features efficient blending, high shear mixing, and controllable parameters to optimize the emulsification process.

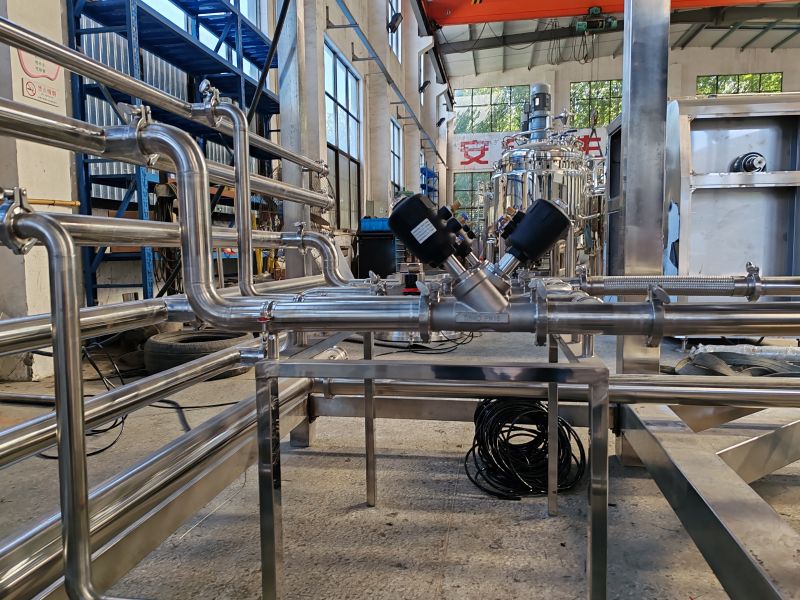

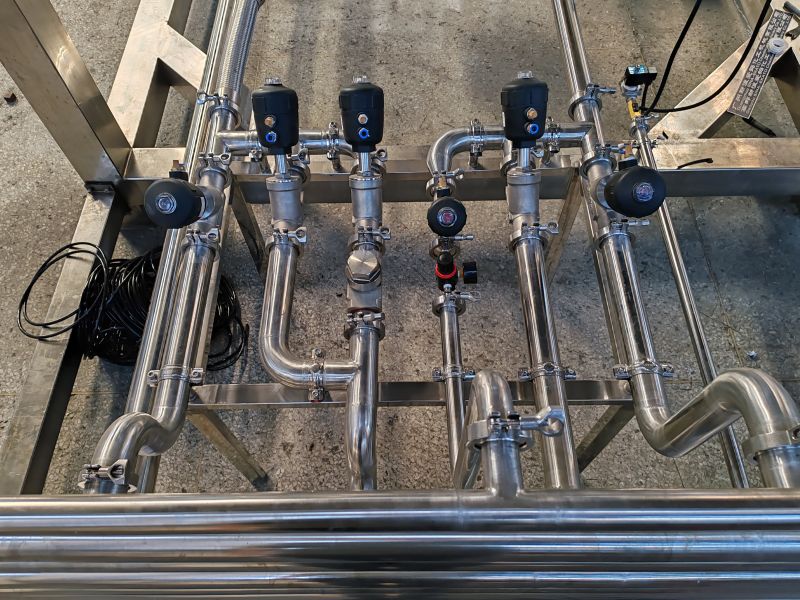

Piping & Control System
The system includes specialized pipes for sewage, steam inlet/outlet, cooling water, and compressed air. The independent control cabinet utilizes Siemens PLC touch screens for precise automation and data monitoring.
Related Production Equipment
RO Treatment Water System | Auto Washing Bottle Machine | Bottle Drying Machine | Sterile Storage Tank | Auto Liquid Filling Machines | Auto Labeling Machine
Frequently Asked Questions
Q1: What materials are used for the PME-4000L Mixer's construction?
A: The inner layer is made of imported SUS316L stainless steel for direct material contact, while the jacket and outer layers are made of SUS304 stainless steel, meeting GMP standards.
Q2: What are the main components of the control system?
A: The system uses a Siemens PLC touch screen, Siemens inverters and motors, Schneider Electric components, and Omron instruments for precise control.
Q3: How does the stirring system operate?
A: It adopts a bi-directional wall-scraping mixing system with frequency conversion speed adjustment to meet various technological requirements.
Q4: What is the benefit of the bottom circulation homogenizer?
A: It provides efficient blending, high shear mixing, and controllable parameters (speed, flow) to ensure uniform and stable product quality.
Q5: Is the equipment suitable for different types of products?
A: Yes, it is ideal for producing various detergents, cosmetics, spices, and other fine chemicals requiring high-quality mixing and homogenization.
Q6: What kind of warranty and support is provided?
A: We offer a two-year equipment warranty, video factory inspections, finished product video inspections, and comprehensive operation videos.
