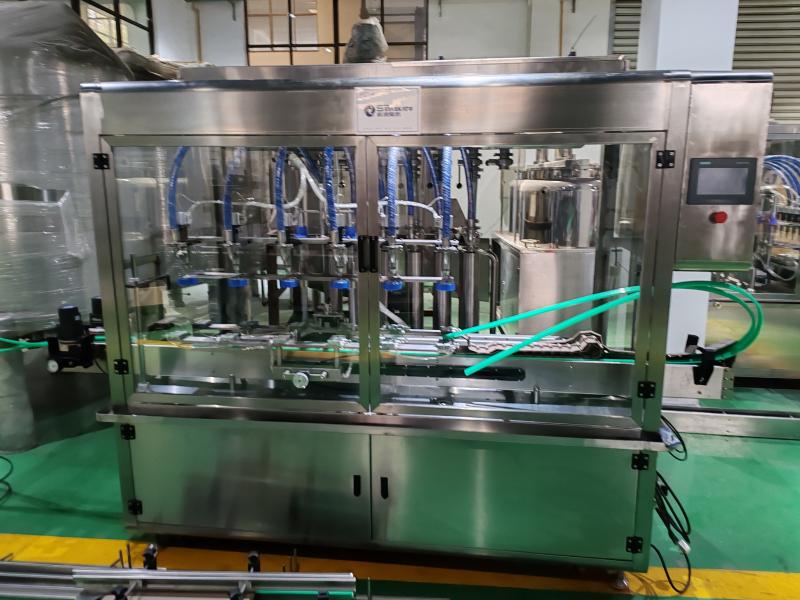

High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
1 / 4
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers
High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers

High-Quality Fully automatic six-head filling and capping machine production line Supplier, Suppliers

This tracking type filling machine is a servo motor cleaner filling production line, which can be used to fill various viscous liquids into bottles and cans, ranging from water and thin liquids to heavy cream. It is suitable for cosmetics, food, pharmaceuticals, petroleum and special industries. From water, diluents to heavy cream, it is an ideal filling machine for cosmetics, food, pharmaceuticals, petroleum and special industries, featuring fast filling speed, high filling accuracy and wide application range.
Send Inquiry

Product Description

⚙️High-Precision Piston Fillers: Designed to dispense products of different viscosity. The components that come in contact with product are made of 316 stainless steel (sourced from Sweden) and processed by CNC machines to ensure a surface roughness lower than 0.8.

🧩Core Components: Features main pneumatic components from Airtac (Taiwan) and PLC & Touch screen control systems from Siemens.

💧Applications: Mainly used for lubricating oils, skin care products, hair washing products, body washing, hair care, body care, sauces, and oral liquids.

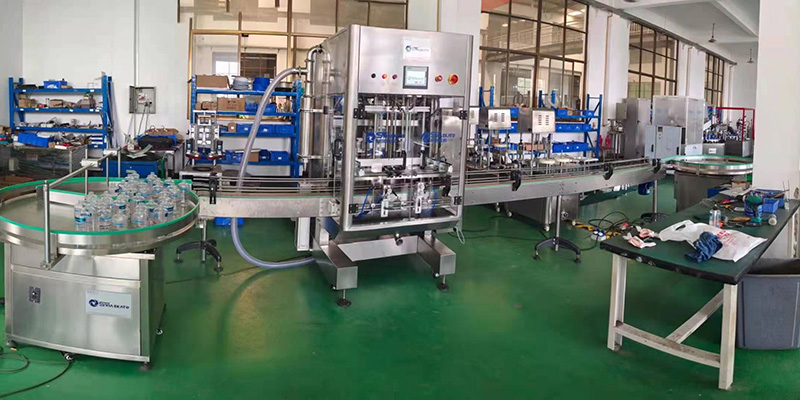

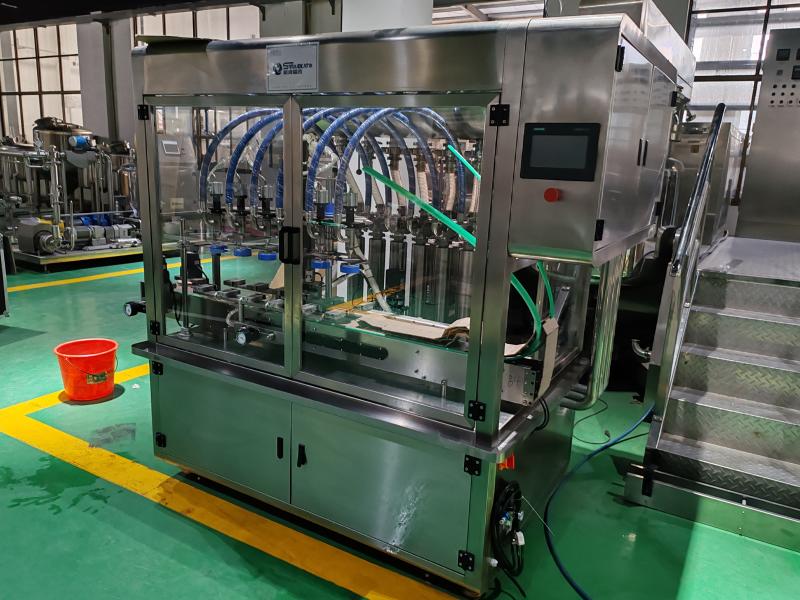

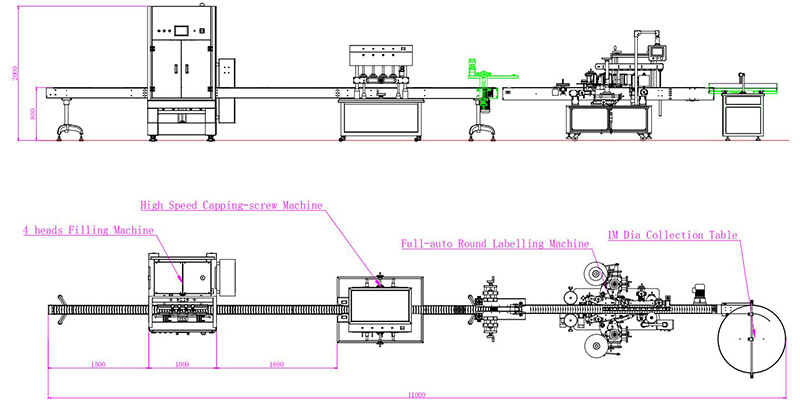

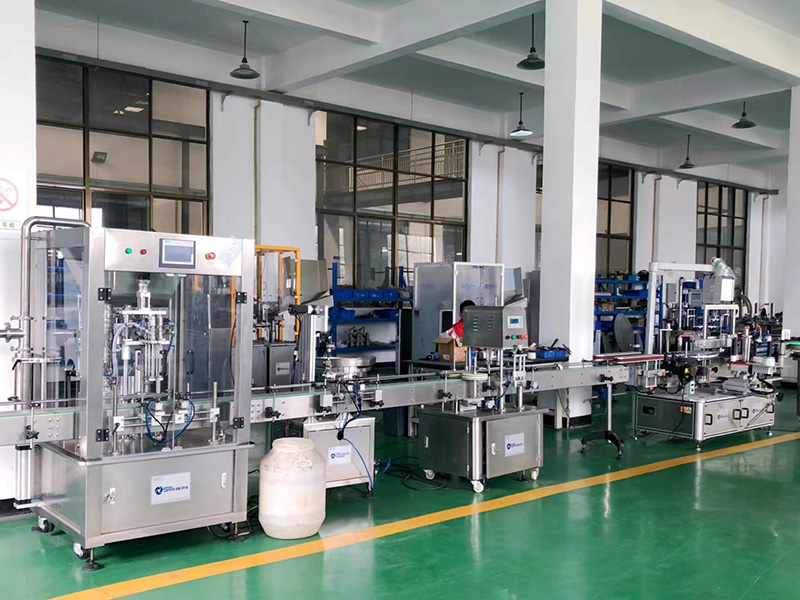

Machine Overview
Component Detail

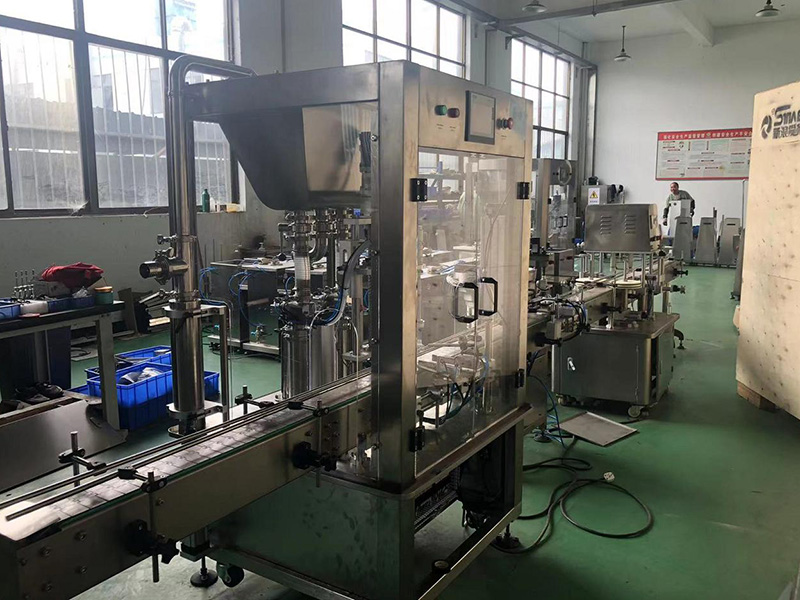

Filling Head
Technical Specifications
No Description Specification Details
1 Filling Head Options 2 heads; 4 heads; 6 heads; 8 heads; 10 heads; 12 heads (Customizable)
2 Filling Range 5-60ML; 10-120ML; 25-250ML; 50-500ML; 100-1000ML
3 Bottle Height Range 50-200MM
4 Bottle Diameter Range 40-110MM
5 Applicable Products Cream, lotion, detergent, shampoo, liquid-washing products, water
6 Filling Precision ±1%
7 Air Pressure 0.6Mpa
8 Program Controller Siemens Touch Screen & PLC
9 Filling Speed 40-80 bottles/min
10 Working Conditions Power: 220V 2KW | Air pressure: 4-6KG
11 Dimensions 5000 * 1300 * 1950mm
Application Gallery
Product Samples
Cream Lotion Hand Sanitizer
Hair Care
Hair Conditioner
Key Performance Features
✔ Equipped with a bottle mouth localizer suitable for irregular shapes.
✔ "No drip" filling nozzle to prevent dripping and stringing.
✔ Intelligence functions: "no bottle no fill" and automatic malfunction scan.
✔ Quick disassembly & assembly using clamps for easy cleaning.
✔ Security alarm system for abnormal liquid levels.
✔ Material feeding control box ensures constant range for accuracy.
✔ Individual fine-tuning for each filling head with counter display.
✔ PLC programming with a convenient touch-type interface.
✔ Liftable filling mouth for high-foam product requirements.
✔ Easy maintenance: single head maintenance does not affect others.
Shampoo Body Wash Mouth Wash
Main Configuration List
No Component Name Brand/Origin
1PLCSIEMENS
2Touch screenSIEMENS

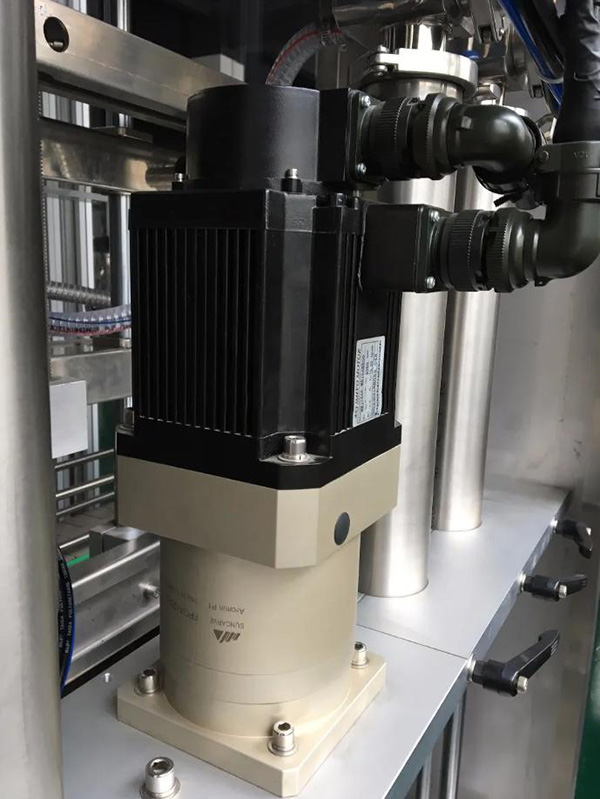

3Servo motor (Filling)MITSUBISHI

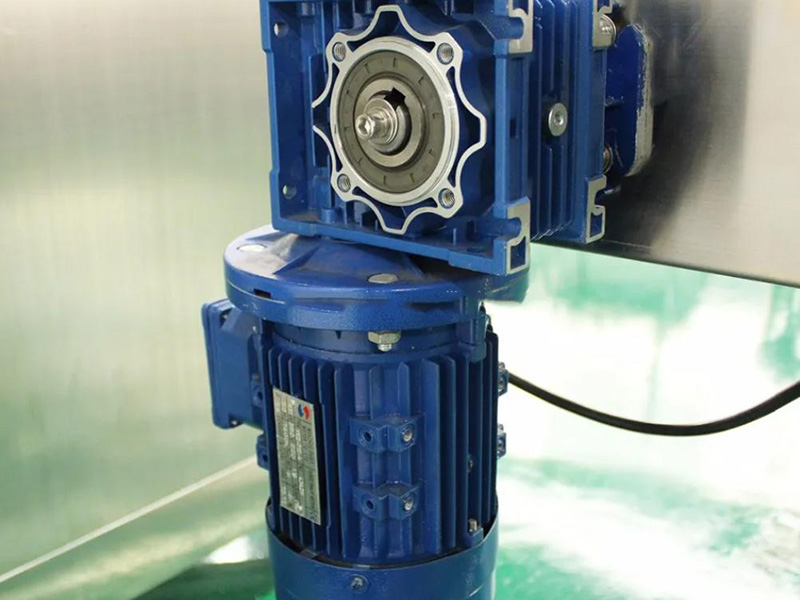

4Conveyor belt motorJSCC
5AC ContractorSchneider
6Emergency ScenterSchneider
7Power SwitchSchneider
8BuzzerSchneider
9ConverterMITSUBISHI
10Filling nozzle cylinderAirTAC
11Rotary valve cylinderAirTAC
12Blocking bottle cylinderAirTAC
13Clamping bottle cylinderAirTAC
14Photoelectric switchOMRON
15Solenoid valveAirTAC
16FilterAirTAC
Auxiliary Equipment & Certification

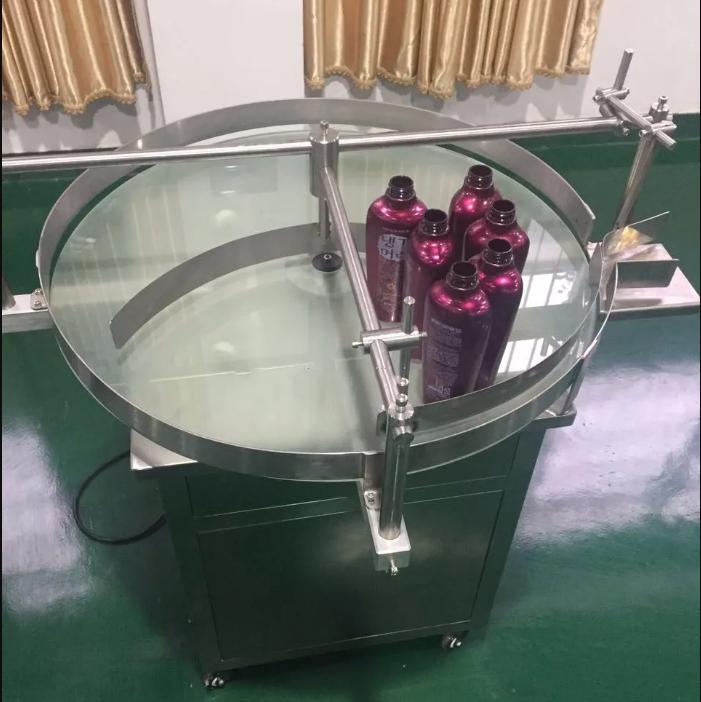

Feeding Table & Collection Table

CE Certificate

CE Certificate

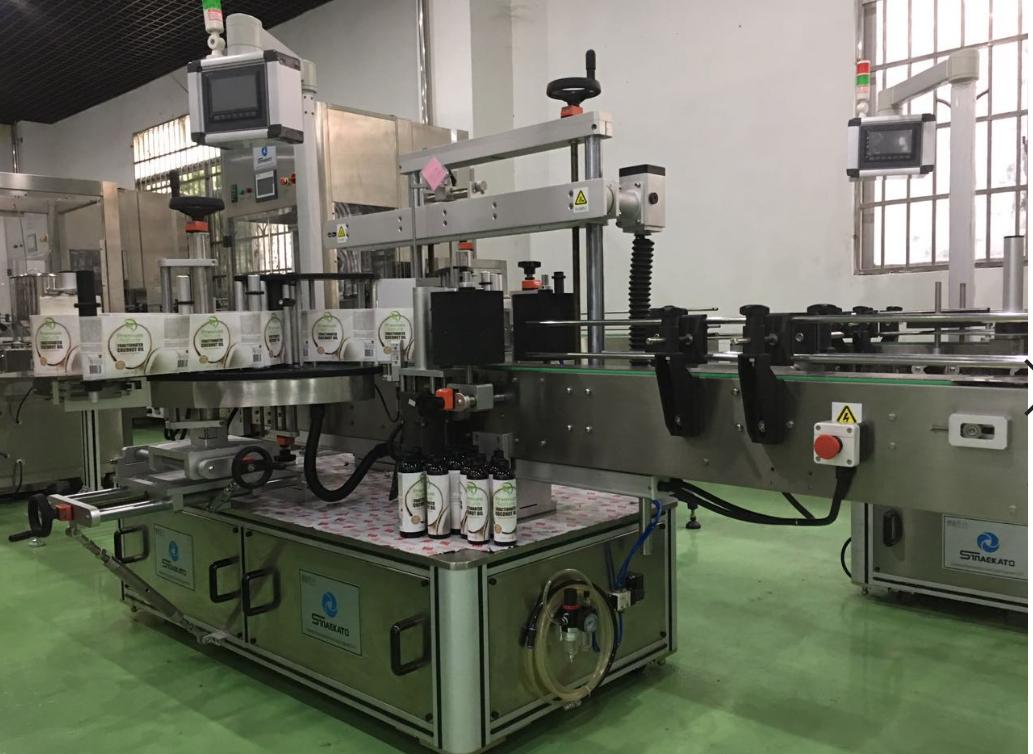

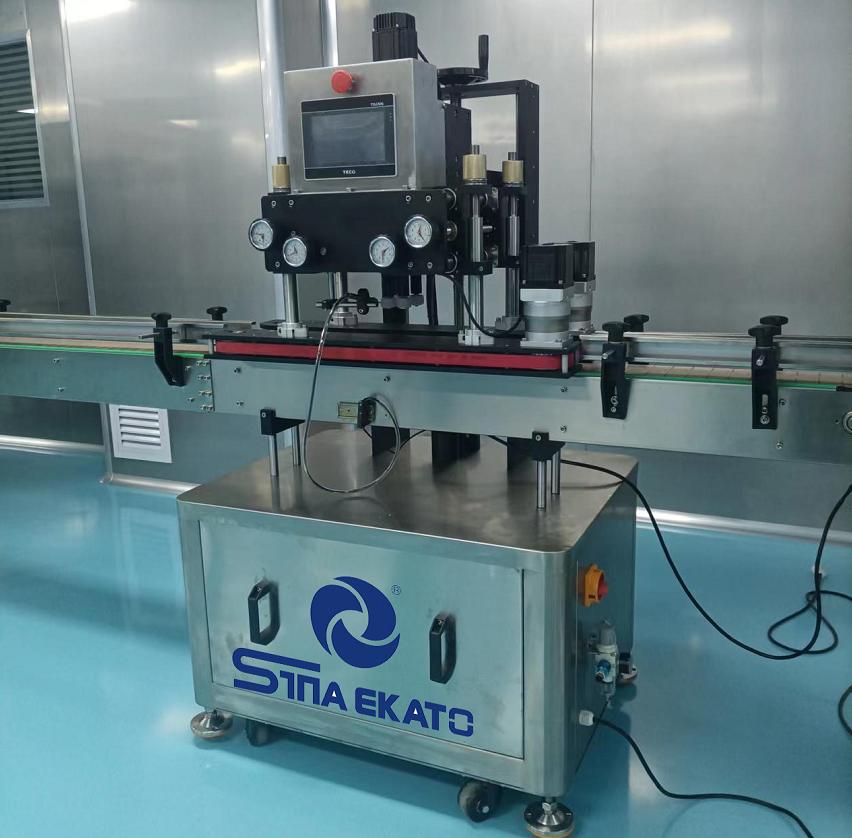

Labeling Machine Full-auto Capping Screw Machine
Frequently Asked Questions (FAQ)
What materials are used in the construction of this machine?
The parts that come in contact with the product are made of 316L stainless steel, while other parts are made of 304 stainless steel. The 316L steel is sourced from Sweden and CNC-processed for high surface quality.
What is the filling accuracy of the piston filler?
The machine offers high filling precision with a tolerance of ±1%.
Can this machine handle different bottle shapes?
Yes, it is equipped with a bottle mouth localizer that makes it suitable for various shapes, including irregular bottles.
Does the machine have a safety system for malfunctions?
Absolutely. It includes an automatic malfunction check and scan function, a security alarm for abnormal liquid levels, and a "no bottle, no fill" feature.
What control systems are integrated into the machine?
The machine utilizes a Siemens PLC and a Siemens touch-screen man-machine interface for convenient parameter settings and fault self-diagnosis.
What range of filling volumes can the machine accommodate?
Depending on the configuration, it can handle ranges from 5-60ML up to 100-1000ML. The overall filling volume can be adjusted rapidly via the counter display.
