The all-round wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements. The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc. during the liquid detergent production process so as to save energy consumption and shorten production period.

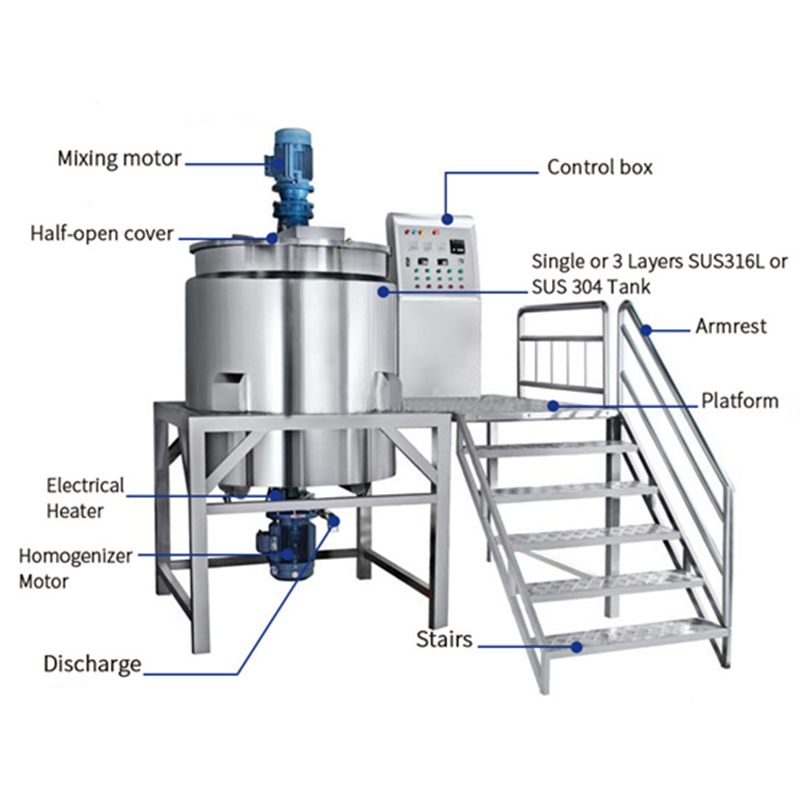

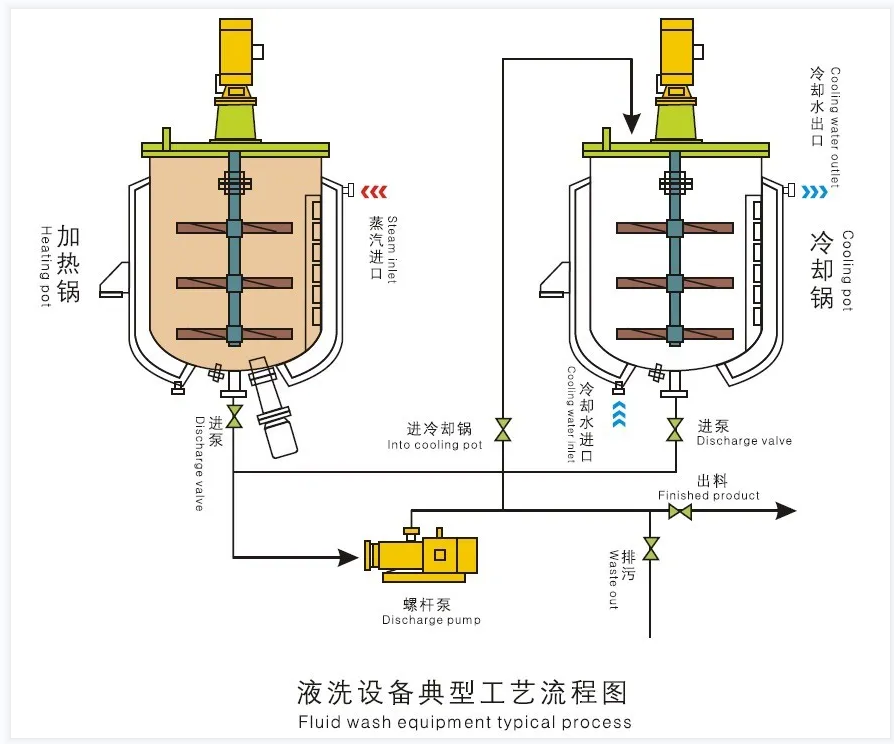

The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements. According to customer requirement, the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge, bottom direct discharge or by transfer pump.
Professional Engineering & Service

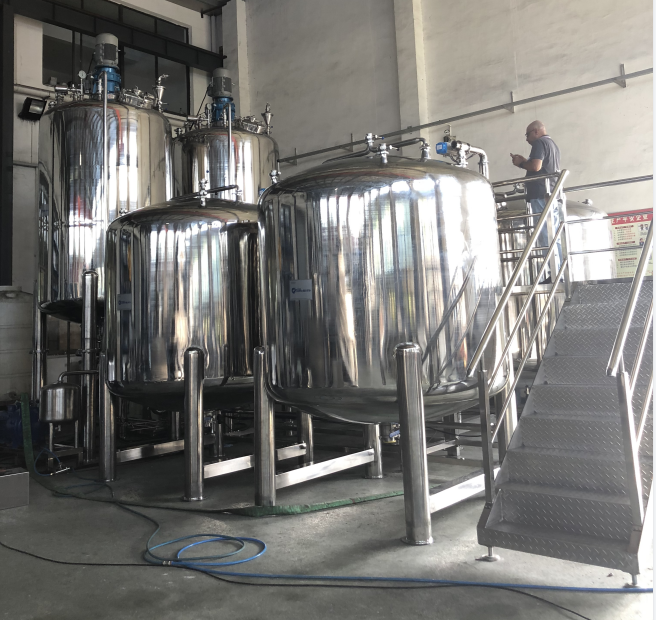

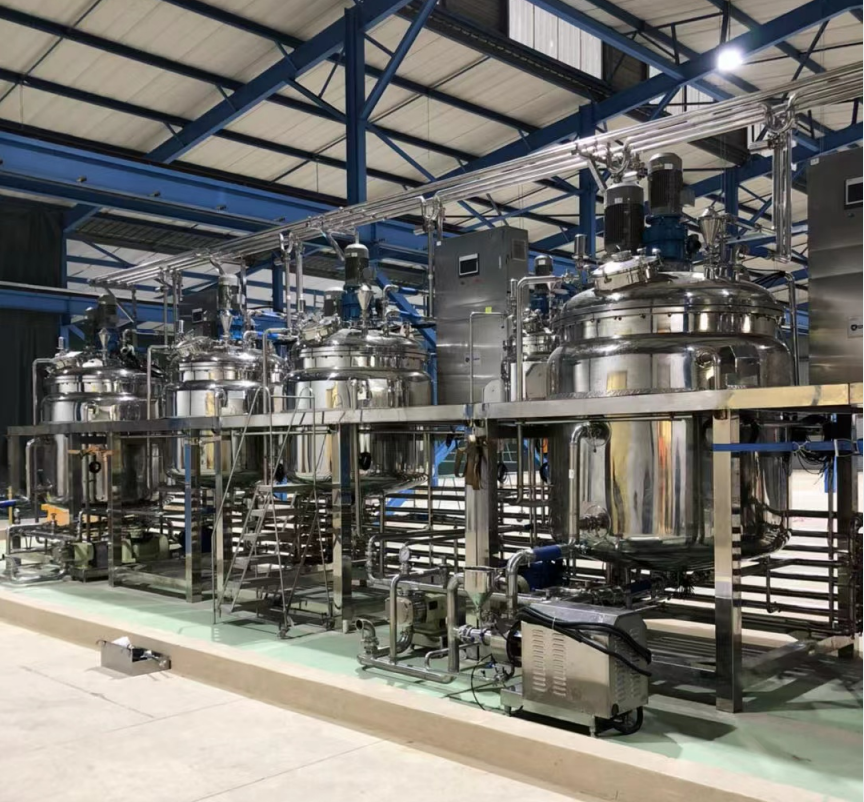

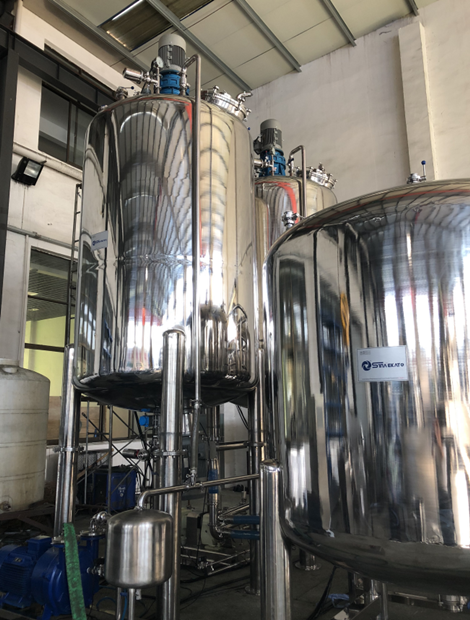

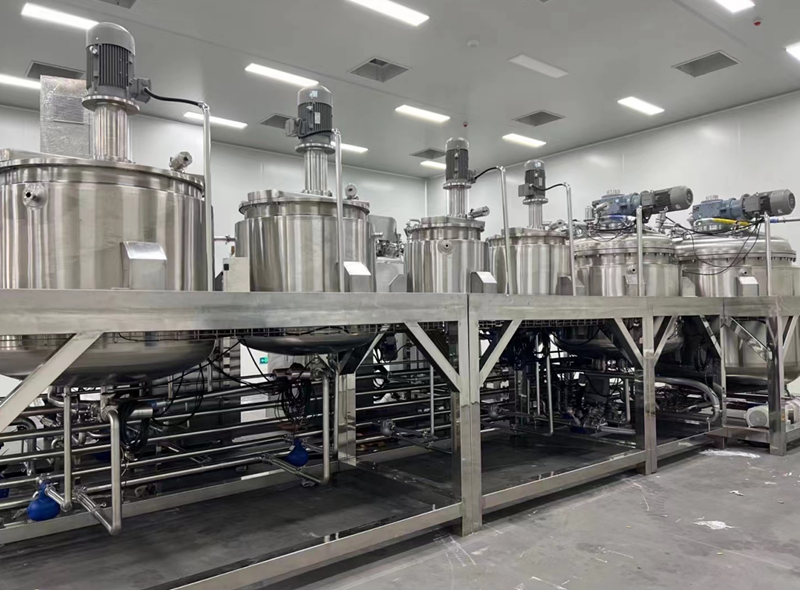

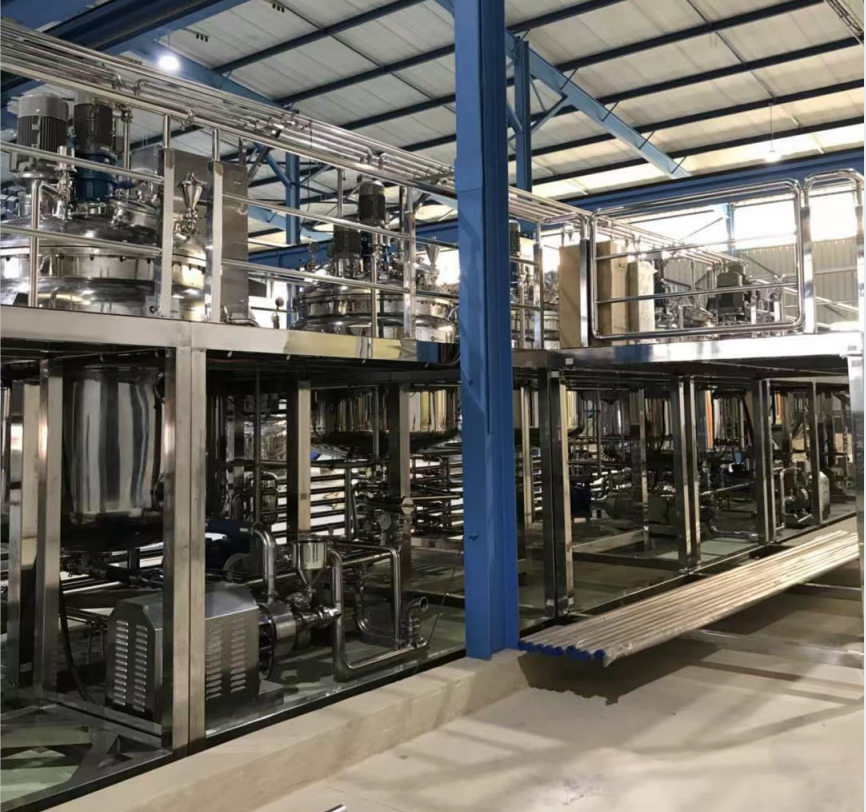

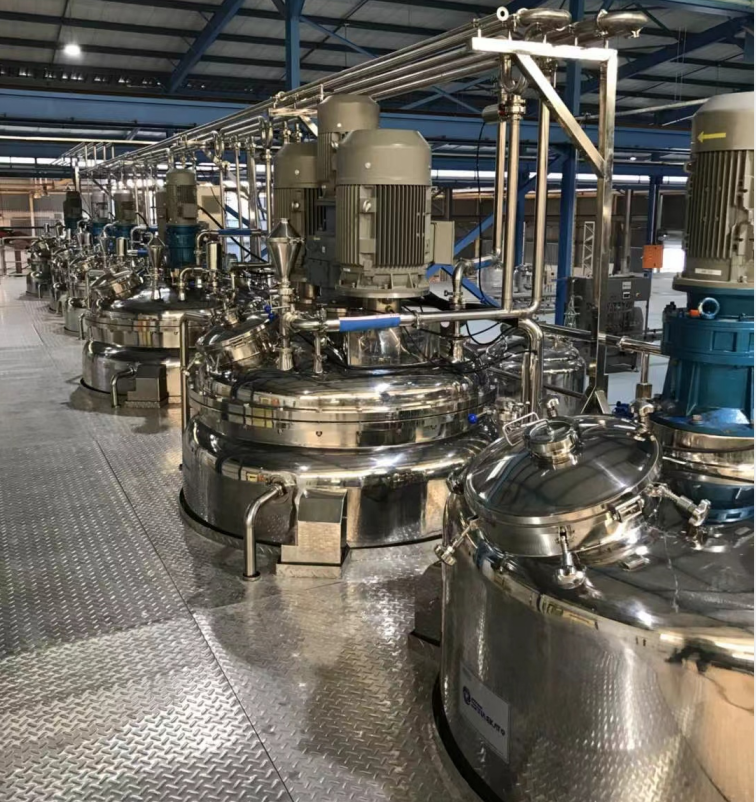

With many years of experience in domestic and international installation, we have successively undertaken the integral installation of hundreds of large-sized projects.
Our team provides internationally top-ranking professional project installation experience and management experience.
Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.
We are sincerely providing customers from home and abroad with machinery & equipment, cosmetic raw materials, packing materials, technical consultation and other service.
Technical Parameters
| Model |
Capacity |
Mixing power (kw) |
Mixing speed (r/min) |
Homogenizing power (kw) |
Homogenizing speed (r/min) |
Heating method |
| PME-200 |
200L |
0.75 |
0-65 |
2.2-4 |
3000 |
Steam Heating Or Electric Heating |
| PME-300 |
300L |
0.75 |
0-65 |
2.2-4 |
3000 |
| PME-500 |
500L |
2.2 |
0-65 |
5.5-7.5 |
3000 |
| PME-1000 |
1000L |
4 |
0-65 |
7.5-11 |
3000 |
| PME-2000 |
2000L |
5.5 |
0-53 |
11-15 |
3000 |
| PME-3000 |
3000L |
7.5 |
0-53 |
18 |
3000 |
| PME-5000 |
5000L |
11 |
0-42 |
22 |
3000 |
| PME-10000 |
10000L |
15 |
0-42 |
30 |
3000 |
| The parameters for reference ONLY, all the machines can be customized accordingly. |
Under the support of German design center and national light industry and daily chemicals research institute, and regarding senior engineers and experts as the technological core, we are a professional manufacturer of various types of cosmetic machinery and equipment and have become a brand enterprise in the daily chemical machinery industry. The products are applied in such industries as cosmetics, medicine, food, chemical industry, electronics, etc.
Quality & Certifications
Focus on quality other than quantity certifications
80% of the main parts of our products are provided by world’s famous suppliers. During long-term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
The delivery date is only 30~60 days
Customized plan according to requirements
Support video inspection factory
Equipment warranty for two year
Provide equipment operation video
Support video inspect the finished product
Control Cabinet | Mixing Machine | 300RPM Homogenizer Siemens Motor | Top Blending Control | Blender Blade
Frequently Asked Questions
What types of materials can the mixing machine handle?
The high-speed homogenizer can powerfully mix solid and liquid raw materials, rapidly dissolving indissoluble materials such as AES, AESA, and LSA during production.
What are the available heating methods for the tanks?
According to your specific production requirements, the tanks can be equipped with either steam heating or electric heating systems.
Are your machines compliant with industry standards?
Yes, the tank bodies and pipes adopt mirror polishing and are constructed with three-layer stainless steel, fully conforming to GMP requirements.
Can the equipment be customized?
Absolutely. All technical parameters provided are for reference only; we provide customized plans and machine adjustments based on your specific needs.
What is the standard delivery time and warranty?
Our standard delivery date ranges from 30 to 60 days. We provide a two-year warranty for the equipment along with operation videos and support.
Do you support remote inspections?
Yes, we support video inspections for both the factory and the finished products to ensure quality and transparency.
