Working Principle & Key Features
According to the principle that metal objects generate huge eddy current and heat under the action of high-frequency electromagnetic field, the machine fuses the adhesive film of the lower layer of aluminum foil and fuses with bottle mouth through electromagnetic induction to achieve continuous and rapid non-contact sealing.
⚙️
Adjustable Control Lever: Can adjust the height of the sealing head for more convenient operation according to bottle sizes.
🔥
Instant Heat Fusion: Seals the mouth by fusing aluminum foil and bottle mouth through instant heating technology.
🛡️
Certified Quality: The motor adopts high-quality components and has passed CE certification for safety and reliability.
🔄
Variable Speed: Speed knob to adjust the transmission speed of the conveyor belt according to actual operation status.

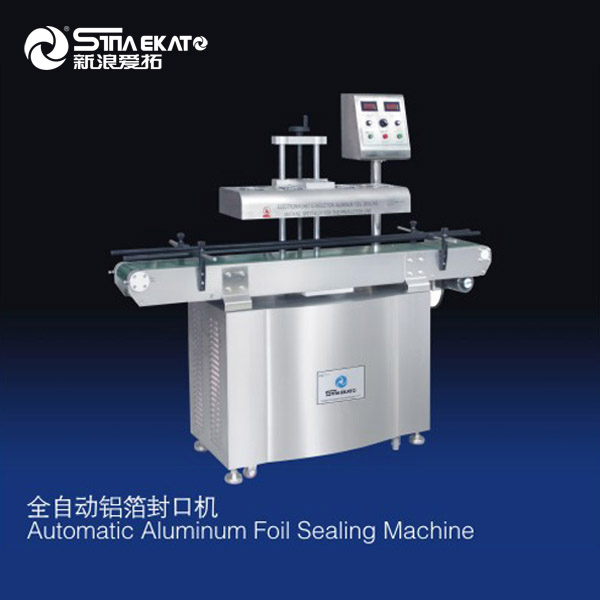

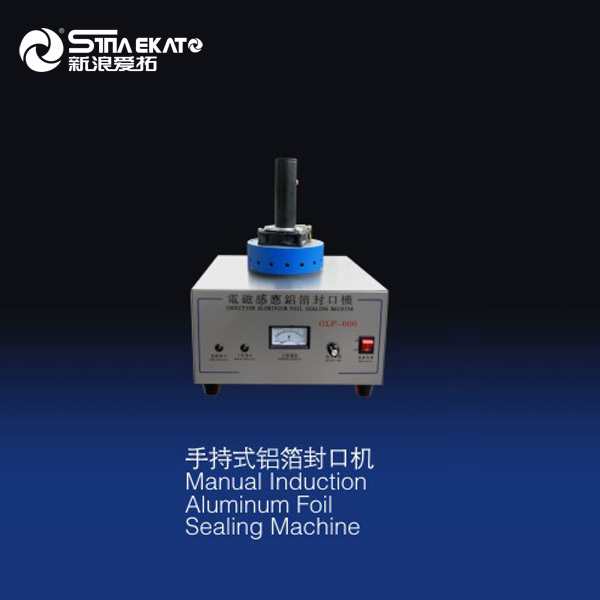

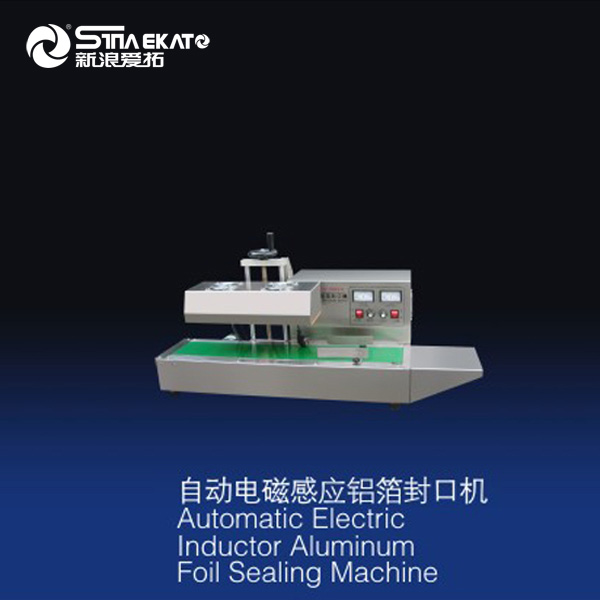

Product Display
Technical Capabilities
📏
Sealing Range: 20-130mm sealing range can be adjusted freely to achieve ideal sealing quality and efficiency.
⚠️
Failure Protection: If a failure occurs, the conveyor automatically stops to achieve sealing and unsealing isolation.
⚡
Stepless Regulation: Conveyor belt adopts electronic stepless speed regulation based on voltage and current changes.
↕️
Electric Adjustment: The sensor head height is adjusted by electric control, fitting objects around 40 ~ 400 mm high.
Specifications
| Name |
Sealing machine for aluminum foil cup |
| Product Material |
304 Stainless Steel |
| Power Supply |
220V 2.2kw |
| Capacity |
20-50 bottles per minute |
| Type of Cooling |
Forced air cooling |
| Weight |
30 kgs |
| Machine Size |
900x450x500mm |
| Characteristic |
Stably and efficiently |
Frequently Asked Questions
Q1: How does the electromagnetic induction sealing process work?
A: It uses high-frequency electromagnetic fields to generate eddy currents and heat in metal objects. This heat fuses the aluminum foil adhesive to the bottle mouth without direct contact.
Q2: What sizes of bottles can this induction sealer handle?
A: The machine supports a sealing range of 20-130mm and can accommodate container heights ranging from 40mm to 400mm.
Q3: Is the conveyor speed adjustable?
A: Yes, it features an electronic stepless speed regulation knob that allows you to adjust the conveyor belt speed based on your production requirements.
Q4: What happens if there is an operational failure during sealing?
A: The machine is designed for safety; if a failure occurs, the conveyor automatically stops to isolate the sealing process.
Q5: What material is the machine made of?
A: The machine is constructed with high-quality 304 stainless steel, ensuring durability and compliance with hygiene standards.
Q6: What cooling system does the machine use?
A: It utilizes a forced air cooling system to maintain stable temperatures during continuous high-speed operation.
